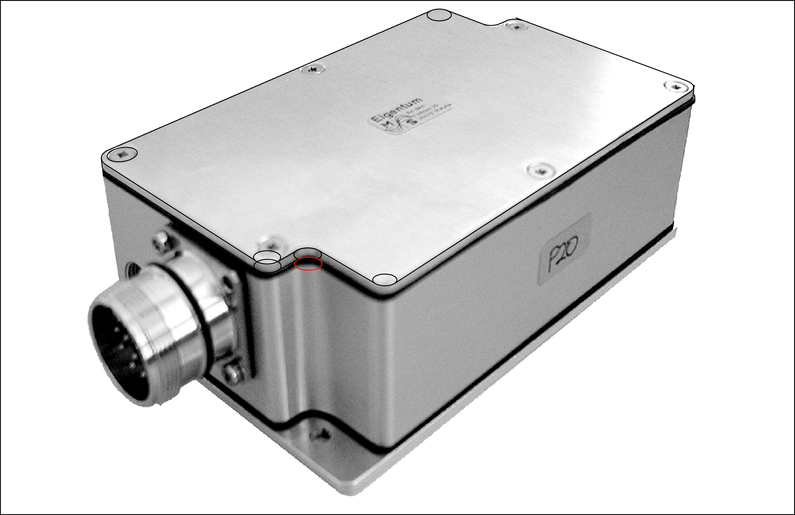

INA SRMB01

Measuring instrument rpm technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 0.45 kg
Maximum Operating Temperatur (Tmax): 70 °C
Minimum Operating Temperatur (Tmin): 0 °C
Length Srmb Total (Length Srmb): 236 mm
Length Srmb Exclud Plugs (Length Srmb): 125 mm
Width Srmb (Width Srmb): 80 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Mass	≈m	0.45 kg
Minimum operating temperature	Tmin	0 °C
Maximum operating temperature	Tmax	70 °C

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		426492
Brand		INA
Base Type		SRMB01

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Electronic evaluation unit
Short Description		Measuring instrument rpm

Technical Data8 parameters

Technical Data
Parameter	Symbol	Value
Maximum Operating Temperatur (Tmax)		70 °C
Minimum Operating Temperatur (Tmin)		0 °C
Length Srmb Total (Length Srmb)		236 mm
Length Srmb Exclud Plugs (Length Srmb)		125 mm
Width Srmb (Width Srmb)		80 mm
Supply Voltage (Supply Volta)		5 V DC
Current Consumption (Current Cons)		280 mA
Height Srmb (Height Srmb)		40 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA SRMB01
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
