Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RNA6902 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 28 mm |
| Width | B | 23 mm |
| Basic dynamic load rating | C | 19.5 kN |
| Basic static load rating | C0 | 25.5 kN |
| Fatigue load limit | Pu | 4.55 kN |
| Reference speed | nref | 11700 r/min |
| Limiting speed | nG | 21100 r/min |
| Mass | ≈m | 0.03907 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 393526 | |
| Brand | INA | |
| Base Type | RNA6902 | |
| Old Designation | ["RNA6902"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

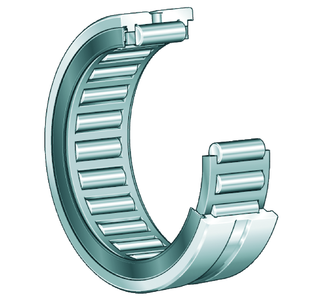

| Construction | Needle roller bearings RNA, to DIN 617/ISO 1206 | |
| Short Description | Radial roller bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Under Roller Diameter (Fw) | 20 mm | |
| Outside Diamater (D) | 28 mm | |
| Total Width (B) | 23 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 19,500 N | |
| Basic Static Load Rating, Radial (C0R) | 25,500 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 12,600 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 21,100 1/min | |
| Reference Speed (Nϑr) | 11,700 1/min | |
| Width, Outer Ring (C) | 23 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.3 mm | |
| Fatigue Load Limit, Radial (Cur) | 4,550 N |
