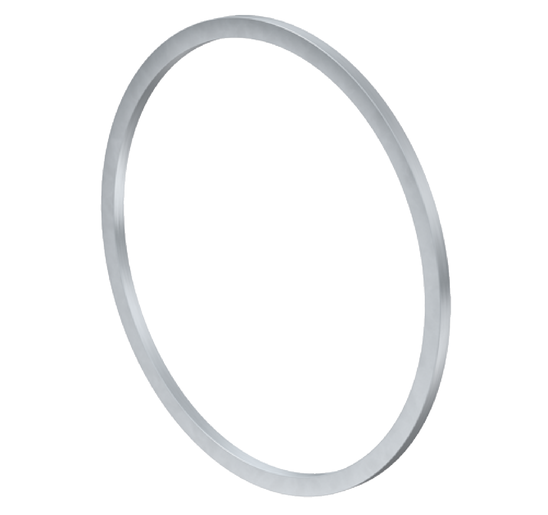

INA RG.GE560-DF-0611

Ring technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 57 kg
Inner Diameter, Lower Tolerance (Dut): -0.8 mm
Inner Diameter, Upper Tolerance (Dot): 0.8 mm
Height, Lower Tolerance (B1Ut): 0 mm
Outer Dismeter, Upper Tolerance (Dot): 0.8 mm
Inner Diameter (D): 561 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Mass	≈m	57 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1226700
Brand		INA
Base Type		RG.GE560-DF-0611

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Lifting device
Short Description		ring

Technical Data9 parameters

Technical Data
Parameter	Symbol	Value
Inner Diameter, Lower Tolerance (Dut)		-0.8 mm
Inner Diameter, Upper Tolerance (Dot)		0.8 mm
Height, Lower Tolerance (B1Ut)		0 mm
Outer Dismeter, Upper Tolerance (Dot)		0.8 mm
Inner Diameter (D)		561 mm
Total Width (Total Width)		52 mm
Outer Diameter (D)		740 mm
Outer Diameter, Lower Tolerance (Dut)		-0.8 mm
Height, Upper Tolerance (B1Ot)		1 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RG.GE560-DF-0611
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
