Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PABO20 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 32 mm |
| Mass | ≈m | 0.058 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 982791 | |
| Brand | INA | |
| Base Type | PABO20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

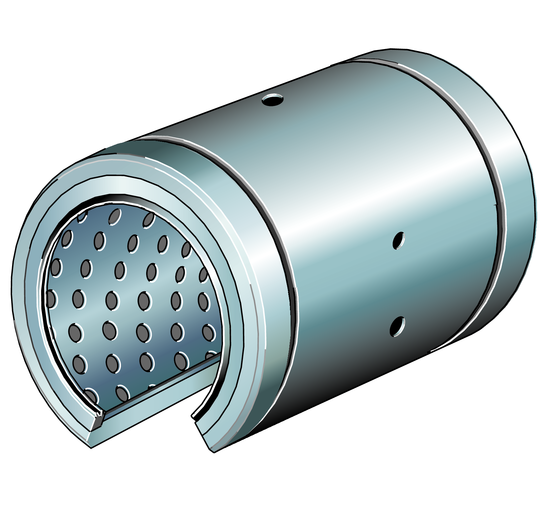

| Construction | Linear plain bearing; open design, sealed on all sides, with relubrication facility | |
| Short Description | Linear plain bearing |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.045 m | |
| Diameter Of Ball Complement (Fw) | 20 mm | |
| Outside Diameter (D) | 32 mm | |
| Basic Static Load Capacity (C0) | 150,000 N | |
| Mounting Dimension (N4) | 2.2 mm | |
| Max (L2) | 31.2 mm | |
| Width Of Sector Opening (B2) | 10 mm | |
| Angle (Α) | 60 ° | |
| Mounting Dimension N L Tec (Nl) | 2.5 mm | |
| Mounting Dimension T 4 Tec (T4) | 1.2 mm |
