Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PAB25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 40 mm |
| Mass | ≈m | 0.131 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 895245 | |
| Brand | INA | |
| Base Type | PAB25 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

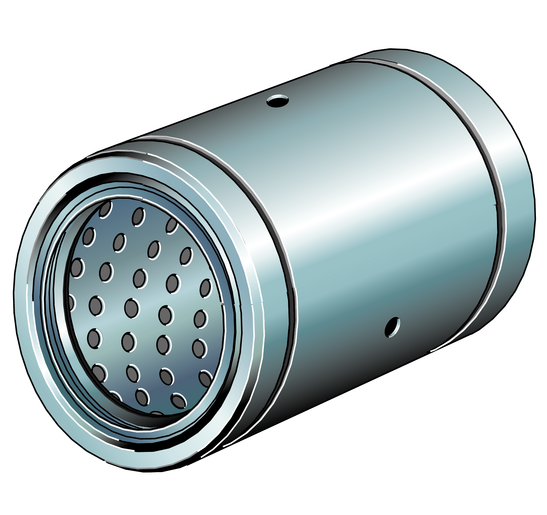

| Construction | Linear plain bearing; sealed on all sides, with relubrication facility | |
| Short Description | Linear plain bearing |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.058 m | |
| Diameter Of Ball Complement (Fw) | 25 mm | |
| Outside Diameter (D) | 40 mm | |
| Basic Static Load Capacity (C0) | 250,000 N | |
| Max (L2) | 43.7 mm | |
| Mounting Dimension N L Tec (Nl) | 2.5 mm |
