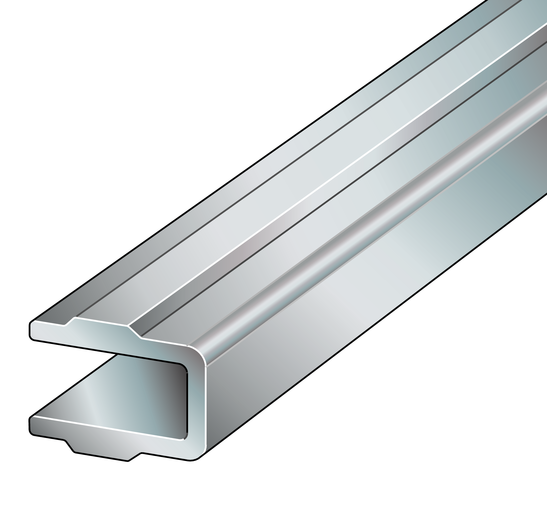

INA NAD-5X5,7X2000

Groove strip technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 0.000012 kg
Fixed Length (L1): 2,000 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications2 parameters

Core specifications
Parameter	Symbol	Value
Series		NAD5
Mass	≈m	0.000012 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		425603
Brand		INA
Base Type		NAD5

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Groove strip
Short Description		Groove strip

Technical Data1 parameter

Technical Data
Parameter	Symbol	Value
Fixed Length (L1)		2,000 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA NAD-5X5,7X2000
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
