INA MKVD35-B-C-WL

Dummy guideway technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 93.3 mm
Mass≈m: 0.2 kg
Length Of Carriage (L): 0.19 m
Total Width (B): 93.3 mm
Height (H): 26.1 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Width	B	93.3 mm
Height	H	26.1 mm
Mass	≈m	0.2 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1429387
Brand		INA
Base Type		MKVD35-B-C-WL

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		plastic dummy guidewayscolor variation possible
Short Description		Dummy guideway

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value

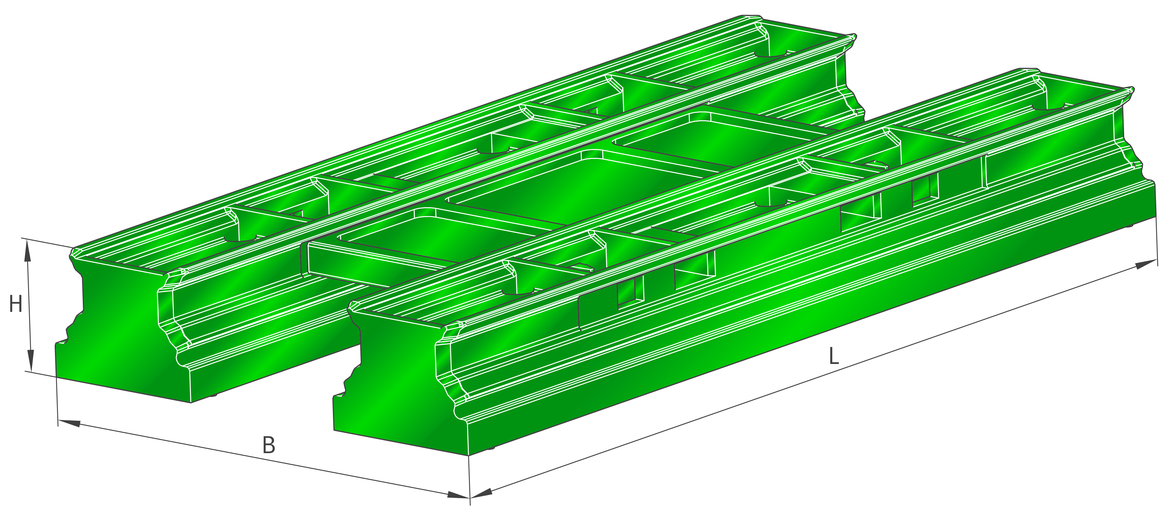

Length Of Carriage (L)		0.19 m
Total Width (B)		93.3 mm
Height (H)		26.1 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA MKVD35-B-C-WL
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
