Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | MKKUVE20 | |
| Width | B | 88 mm |
| Height | H | 110 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2273202 | |
| Brand | INA | |
| Base Type | MKKUVE20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Clamping actuators with four-row linear recirculating bearing and guideway assembly, monorail guidance system and ball screw drivewith two carriages driven in opposing directions, single nut, single spindle support and fixing slots in carriage | |
| Short Description | Linear actuator |
Technical Data44 parameters
| Parameter | Symbol | Value |
|---|---|---|

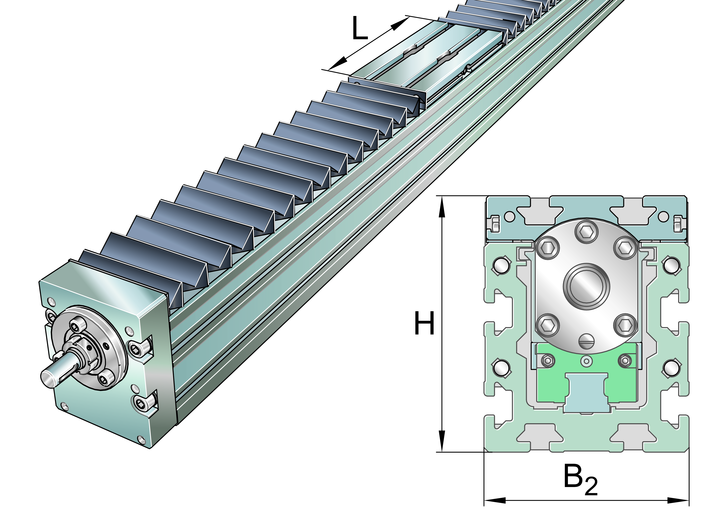

| Total Width (B2) | 88 mm | |
| Total Height (H) | 110 mm | |
| Load Direction I: Compressive Load (Ci) | 21,300 N | |
| Load Direction I: Compressive Load (C0I) | 54,000 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 0.29 m/s | |
| Load Capacity Spindle Nut Dyn (Ca Mu) | 10,500 N | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Mass Of Carriage (Mlaw) | 4.32 kg | |
| Maximum Length Of Support Rail (L2 Max) | 5,850 mm | |
| Tolerance ±0,2 (B87) | 68 mm | |
| Depth Of Thread (T87) | 15 mm | |
| Width Of End Plates (B5) | 87 mm | |
| Distance (A22) | 28 mm | |
| Tightening Torque (Mt Max) | 32 Nm | |
| Height Of Bearing Housing (H5) | 109 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Lz) | 219 cm4 | |
| Length Of Carriage (L) | 200 mm | |
| Length Of Return Unit (L4) | 28 mm | |
| Mass Moment Of Inertia Of Threaded Spindle (Is) | 0.846 kg*cm2 | |
| Tolerance ±0,2 (H87) | 46 mm | |
| Load Direction Ii: Tensile Load (Cii) | 21,300 N | |
| Load Direction Iii: Lateral Load (C0Iii) | 54,000 N | |
| Tolerance 0,01 (D86) | 60 mm | |
| Maximum Acceleration (Amax) | 20 m/s2 | |
| Length Of Keyway (Nl85) | 18 mm | |
| Max. Permissible Static Moment Per Carriage (M0X) | 580 Nm | |
| Tolerance P9 (Nb85) | 5 mm | |
| Load Capacity Fixed Spindle Bearing Dyn (Ca L) | 17,900 N | |
| Load Capacity Fixed Spindle Bearing Stat (C0A L) | 28,000 N | |
| Geometrical Moments Of Inertia Of Support Rail (Ly) | 281 cm4 | |
| Spindle Diameter (D0) | 20 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 21,300 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 1,010 Nm | |
| Length Of Drive Pin (L88) | 42 mm | |
| Load Capacity Spindle Nut Stat (C0A Mu) | 16,600 N | |
| Spindle Pitch (P) | 5 mm | |
| Safety Distance (S) | 5 mm | |
| Tolerance H7 (D85) | 13 mm | |
| Width Of Carriage (B1) | 86 mm | |
| Height Of Support Rail (H2) | 90 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 1,220 Nm | |
| Depth Of Keyway (Nt85) | 3.5 mm | |
| Load Direction Ii: Tensile Load (C0Ii) | 54,000 N |
