Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | MKKUSE20 | |
| Width | B | 88 mm |
| Height | H | 110 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2265228 | |
| Brand | INA | |
| Base Type | MKKUSE20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

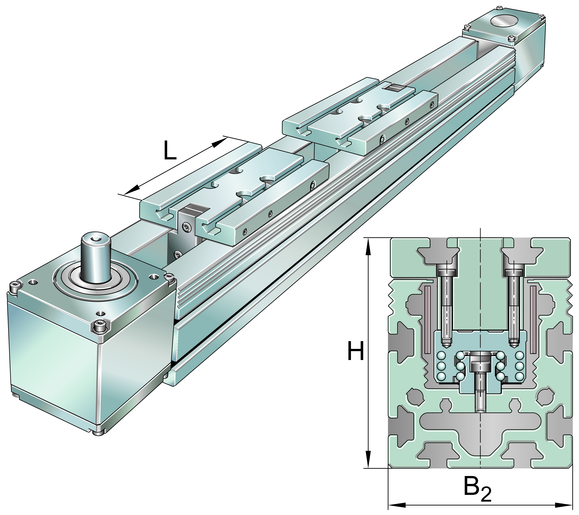

| Construction | Clamping actuators with six-row linear recirculating bearing and guideway assembly, monorail guidance system and toothed belt drive.Basic design, two carriages driven in opposing directions with fixing slots in carriage | |
| Short Description | Linear actuator |
Technical Data44 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B2) | 88 mm | |
| Total Height (H) | 110 mm | |
| Load Direction I: Compressive Load (Ci) | 25,500 N | |
| Load Direction I: Compressive Load (C0I) | 61,000 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 5 m/s | |
| Lower Tolerance (Tol T86) | 0 mm | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Depth Of Thread (T87 Max) | 12 mm | |
| Ø Bolt Circle (D87) | 80 mm | |
| Mass Of Carriage (Mlaw) | 2.6 kg | |
| Maximum Length Of Support Rail (L2 Max) | 4,000 mm | |
| Mass Of Toothed Belt (Mass Of Toot) | 0.11 kg/m | |
| Height Of Return Unit (H4) | 114.5 mm | |
| Permissible Toothed Belt Operating Force (Permissible) | 650 N | |
| Width Of Carriage (B1) | 86 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Lz) | 198 cm4 | |
| Length Of Carriage (L) | 155 mm | |
| Length Of Return Unit (L4) | 80 mm | |
| Tolerance H7 (D86) | 70 mm | |
| Load Direction Ii: Tensile Load (Cii) | 21,300 N | |
| Upper Tolerance (Tol T86) | 0.3 mm | |
| Mass Moment Of Inertia Of Gears (Mass Moment) | 2.2 kg*cm2 | |
| Load Direction Iii: Lateral Load (C0Iii) | 35,000 N | |
| Tolerance 0,01 (D86) | 61 mm | |
| Maximum Acceleration (Amax) | 30 m/s2 | |
| Length Of Keyway (Nl85) | 16 mm | |
| Max. Permissible Static Moment Per Carriage (M0X) | 530 Nm | |
| Tolerance P9 (Nb85) | 6 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Ly) | 300 cm4 | |
| Max. Permissible Drive Torque (Max. Permiss) | 18 Nm | |
| Load Direction Iii: Lateral Load (Ciii) | 21,000 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 350 Nm | |
| Length Of Drive Pin (L88) | 25 mm | |
| Safety Distance (S) | 85 mm | |
| Feed (Mm/Rotation) (Feed (Mm/Rot) | 160 mm | |
| Tolerance H7 (D85) | 20 mm | |
| Width Of Return Unit (B4) | 80 mm | |
| Depth Fit (T86) | 2.3 mm | |
| Height Of Support Rail (H2) | 90 mm | |
| Repeat Accurancy ± (Repeat Accur) | 0.1 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 305 Nm | |
| Depth Of Keyway (Nt85) | 3.5 mm | |
| Load Direction Ii: Tensile Load (C0Ii) | 35,300 N |
