Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LTS30 | |
| Width | B | 180 mm |
| Height | H | 77 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2270013 | |
| Brand | INA | |
| Base Type | LTS30 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Short Description | Linear table |
Technical Data26 parameters
| Parameter | Symbol | Value |
|---|---|---|

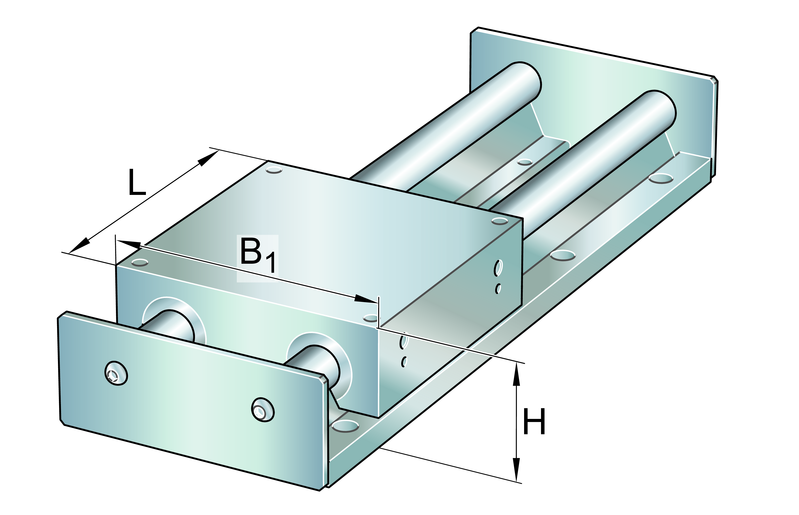

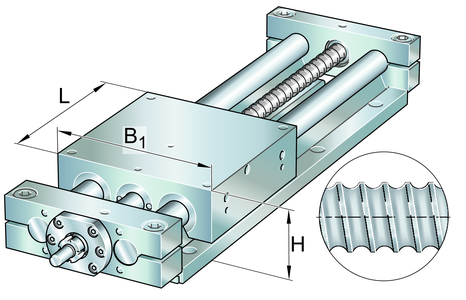

| Width Of Carriage (B1) | 180 mm | |
| Height (H) | 77 mm | |
| Load Direction I: Compressive Load (Ci) | 9,760 N | |
| Load Direction I: Compressive Load (C0I) | 12,000 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 5 m/s | |
| Height H 7 Tec (H7) | 7 mm | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Mass Of Carriage (Mlaw) | 4.4 kg | |
| Total Height (H1) | 35 mm | |
| Length Of Carriage (L) | 180 mm | |
| Load Direction Ii: Tensile Load (Cii) | 5,930 N | |
| Load Direction Iii: Lateral Load (C0Iii) | 10,700 N | |
| Maximum Acceleration (Amax) | 20 m/s2 | |
| Max. Permissible Static Moment Per Carriage (M0X) | 340 Nm | |
| Length Of Bellows Fastener (Bb) | 29 mm | |
| Ø Shaft, Tolerance H7 (D7) | 30 mm | |
| Depth Of Thread (T43) | 26 mm | |
| Effective Length Factor Of Bellow (Fbl) | 1.26 mm | |
| Height Of Carriage (H1) | 60 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 8,970 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 450 Nm | |
| Mounting Dimension (H2) | 42 mm | |
| Length Total (Ltot) | 5,400 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 345 Nm | |
| Load Direction Ii: Tensile Load (C0Ii) | 7,600 N |
