Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LTE16 | |
| Width | B | 100 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2147621 | |
| Brand | INA | |
| Base Type | LTE16 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear tables with closed shaft guidance system and trapezoidal lead screw drive, with shaft support block type B, with bellows, with single nut | |
| Short Description | Linear table |
Technical Data42 parameters
| Parameter | Symbol | Value |
|---|---|---|

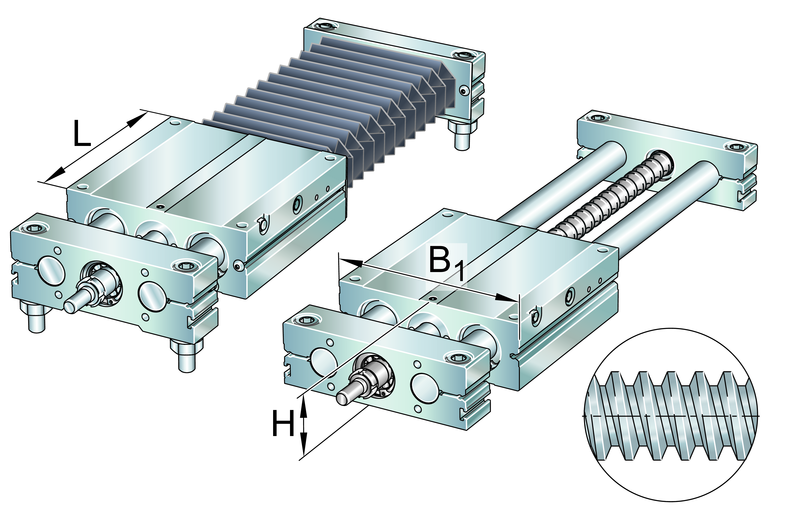

| Width Of Carriage (B1) | 100 mm | |
| Load Direction I: Compressive Load (Ci) | 1,870 N | |
| Load Direction I: Compressive Load (C0I) | 2,120 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 0.075 m/s | |
| Height Of Shaft Support Blocks (H4B) | 32 mm | |
| Width Of Shaft Support Blocks (B4B) | 100 mm | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Mass Of Carriage (Mlaw) | 0.86 kg | |
| Tolerance ±0,2 (B87) | 44 mm | |
| Tolerance ±0,2 (H87) | 22 mm | |
| Total Height (H1) | 18 mm | |
| Length Of Carriage (L) | 100 mm | |
| Load Direction Ii: Tensile Load (Cii) | 1,870 N | |
| Load Direction Iii: Lateral Load (C0Iii) | 2,120 N | |
| Maximum Acceleration (Amax) | 2.5 m/s2 | |
| Max. Permissible Static Moment Per Carriage (M0X) | 57 Nm | |
| Height Of Shaft Support Blocks (H5B) | 32 mm | |
| Load Capacity Fixed Spindle Bearing Stat (C0A) | 630 N | |
| Length Of Shaft Support Block Without Drive System (L5) | 18 mm | |
| Length Of Bellows Fastener (Bb) | 20 mm | |
| Ø Shaft, Tolerance H7 (D7) | 16 mm | |
| Depth Of Thread (T43) | 13 mm | |
| Length Of Shaft Support Block With Drive System (L4) | 24 mm | |
| Safety Distance (S) | 3 mm | |
| Spindle Diameter (D0) | 12 mm | |
| Effective Length Factor Of Bellow (Fbl) | 1.5 mm | |
| Basic Static Load Capacity (C0) | 630 N | |
| Max. Permissible Drive Torque (Max. Permiss) | 1.5 Nm | |
| Tolerance H7 (D85) | 5 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 1,870 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 48 Nm | |
| Repeat Accuracy ± (Repeat Accur) | 0.25 mm | |
| Length Of Drive Pin (L88) | 28.5 mm | |
| Spindle Pitch (P) | 3 mm | |
| Mass Moment Of Inertia Of Threaded Spindle (Mass Moment) | 0.09 kg*cm2 | |
| Tolerance H7 (D86) | 17 mm | |
| Depth Fit (T86) | 3 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 45 Nm | |
| Load Direction Ii: Tensile Load (C0Ii) | 2,120 N | |
| Height Of Carriage (H1) | 36 mm | |
| Tolerance G7 (D86) | 0 mm |
