Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LTE08 | |
| Width | B | 65 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2147547 | |
| Brand | INA | |
| Base Type | LTE08 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

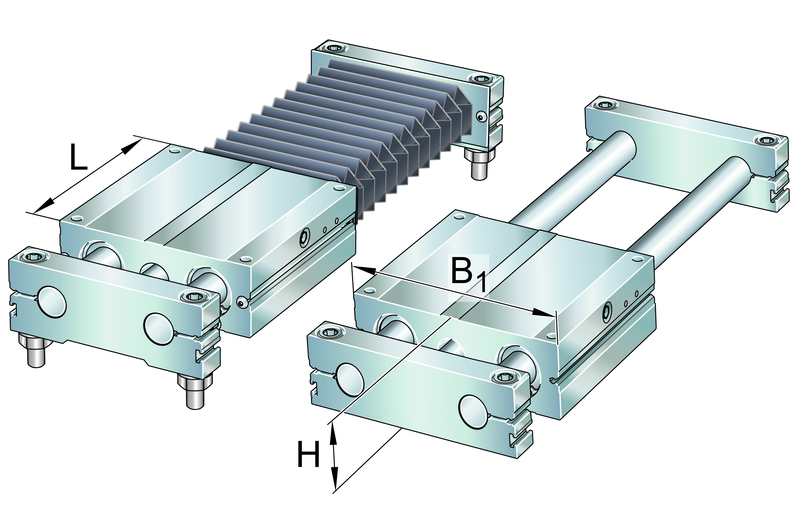

| Construction | Linear tables with closed shaft guidance system, without drive, with shaft support block type B, without bellows | |
| Short Description | Linear table |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width Of Carriage (B1) | 65 mm | |
| Load Direction I: Compressive Load (Ci) | 630 N | |
| Load Direction I: Compressive Load (C0I) | 860 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 5 m/s | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Mass Of Carriage (Mlaw) | 0.24 kg | |
| Total Height (H1) | 11.5 mm | |
| Length Of Carriage (L) | 65 mm | |
| Load Direction Ii: Tensile Load (Cii) | 630 N | |
| Width Of Shaft Support Blocks (B3B) | 65 mm | |
| Load Direction Iii: Lateral Load (C0Iii) | 860 N | |
| Maximum Acceleration (Amax) | 50 m/s2 | |
| Max. Permissible Static Moment Per Carriage (M0X) | 14 Nm | |
| Height Of Shaft Support Blocks (H3B) | 22 mm | |
| Ø Shaft, Tolerance H7 (D7) | 8 mm | |
| Depth Of Thread (T43) | 11 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 630 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 15 Nm | |
| Length Of Shaft Support Blocks (L3) | 12 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 15 Nm | |
| Load Direction Ii: Tensile Load (C0Ii) | 860 N | |
| Height Of Carriage (H1) | 23 mm |
