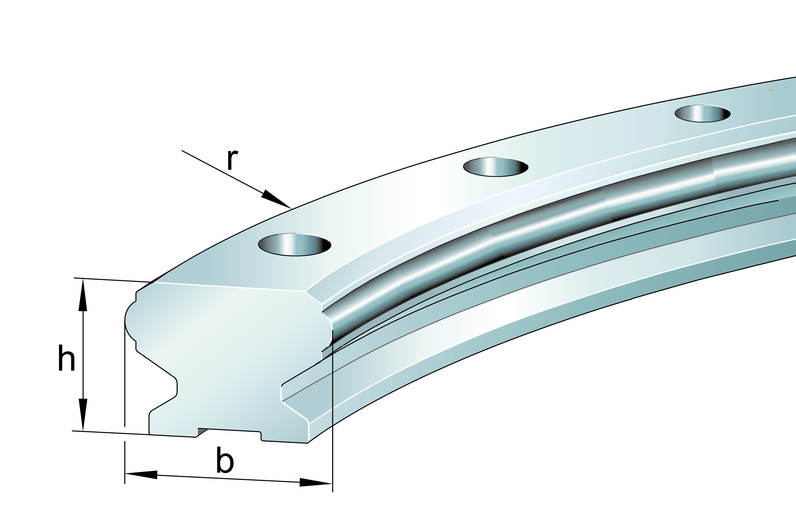

INA LFSR32-300/360-ST

Guideway, curved technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 32 mm
Mass≈m: 6.4 kg
Width (B): 32 mm
Height (H): 20 mm
Diameter Shaft (Dlw): 6 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		LFSR32-300..-ST..
Width	B	32 mm
Height	H	20 mm
Mass	≈m	6.4 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		904647
Brand		INA
Base Type		LFSR32-300..-ST..

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		solid profile, curved guideway
Short Description		Guideway, curved

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		32 mm
Height (H)		20 mm
Diameter Shaft (Dlw)		6 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA LFSR32-300/360-ST
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
