Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LFS42 | |
| Bore diameter | d | 15 mm |
| Width | B | 42 mm |
| Height | H | 20 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2072969 | |
| Brand | INA | |
| Base Type | LFS42 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

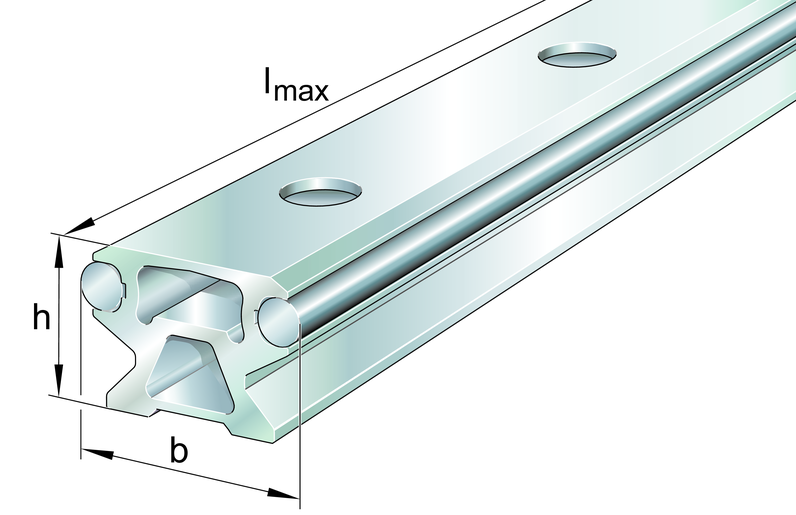

| Construction | hollow section profile, with two raceway shafts; corrosion-resistant design possible | |
| Short Description | Guideway |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 42 mm | |
| Height (H) | 20 mm | |
| Cross Sectional Area (Lfq) | 358 mm² | |
| Width (B1) | 28 mm | |
| Distance (Ar Min) | 20 mm | |
| Distance (Ez) | 10.1 mm | |
| Wider Resistance Torque (Wz) | 1,391 mm³ | |
| Height (H4) | 12.6 mm | |
| Total Height (H1) | 12 mm | |
| Increment (Jl) | 125 mm | |
| Second Moment Of Area (Lz) | 14,052 mm⁴ | |
| Wider Resistance Torque (Wy) | 1,858 mm³ | |
| Length Maximum (Lmax) | 6,000 mm | |
| Distance (Ar Max) | 113 mm | |
| Diameter Shaft (Dlw) | 10 mm | |
| Distance (Al Max) | 113 mm | |
| Distance (Al Min) | 20 mm | |
| Second Moment Of Area (Ly) | 33,929 mm⁴ | |
| Bore Diameter (N3) | 15 mm | |
| Bore Diameter (N1) | 9 mm | |
| Distance (A2) | 32 mm |
