Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LFS32 | |
| Width | B | 32 mm |
| Height | H | 66.5 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2073598 | |
| Brand | INA | |
| Base Type | LFS32 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

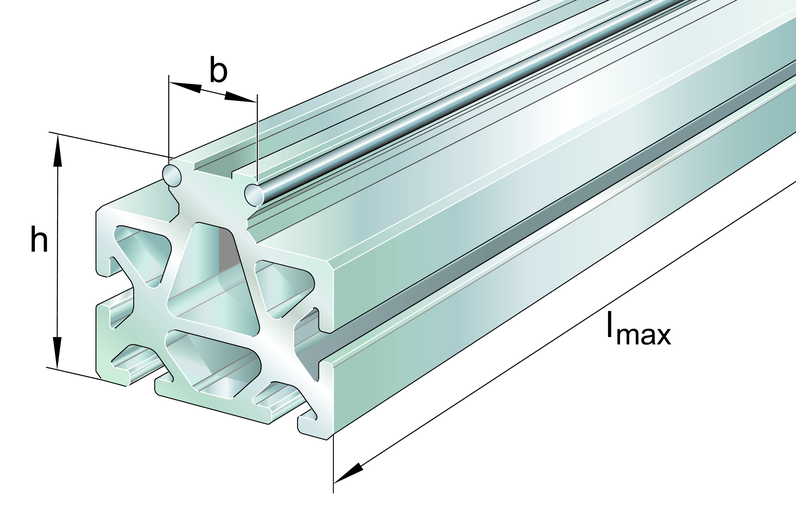

| Construction | hollow section profile, with fixing slots, with two raceway shafts; corrosion-resistant design possible | |
| Short Description | Guideway |
Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 32 mm | |
| Height (H) | 66.5 mm | |
| Cross Sectional Area (Lfq) | 2,206 mm² | |
| Width (B1) | 75 mm | |
| Distance (Ez) | 36.8 mm | |
| Wider Resistance Torque (Wz) | 20,707 mm³ | |
| Height (H4) | 61 mm | |
| Width (B5) | 10.2 mm | |
| Height (H2) | 25 mm | |
| Second Moment Of Area (Lz) | 762,105 mm⁴ | |
| Wider Resistance Torque (Wy) | 26,672 mm³ | |
| Length Maximum (Lmax) | 8,000 mm | |
| Depth (T6) | 43 mm | |
| Diameter Shaft (Dlw) | 6 mm | |
| Second Moment Of Area (Ly) | 1,000,234 mm⁴ | |
| Height (H7) | 47 mm | |
| Distance (A2) | 26 mm | |
| Depth (T7) | 1.6 mm |
