Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters

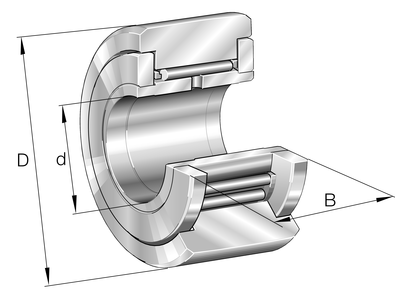

| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 20 mm |
| Outside diameter | D | 47 mm |
| Width | B | 20 mm |
| Mass | ≈m | 0.163 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 425891 | |
| Brand | INA | |
| Base Type | LFR2204-10-2RSR-NA |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Yoke type track roller | |
| Short Description | Yoke type track roller |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width Inner Ring (B) | 20 mm | |
| Bore Diameter (D) | 20 mm | |
| Effective Dynamic Load Rating As Track Roller (Radial) (Cr W) | 13,700 N | |
| Effective Static Load Rating As Track Roller (Radial) (C0R W) | 18,600 N | |
| Diameter Shaft (D) | 10 mm | |
| Width, Outer Ring (C) | 17.8 mm | |
| Limit Of Fatigue Load (Cur W) | 2,550 N | |

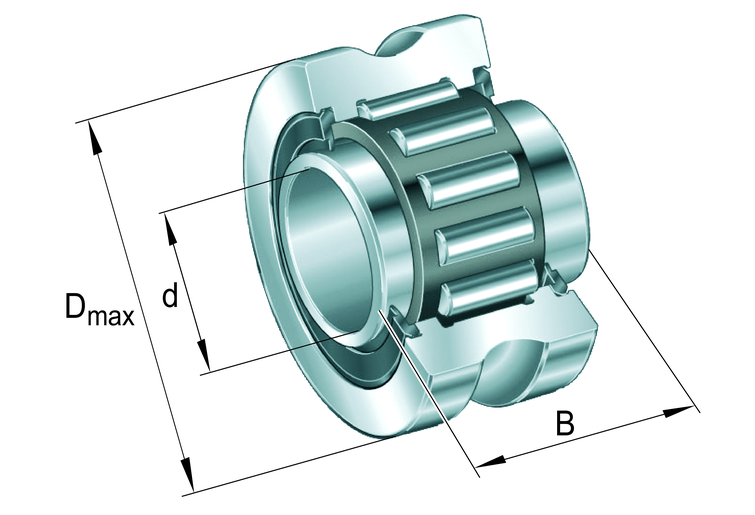

| Outside Diameter Of Track Roller Dmax Tec (Dmax) | 47 mm |
