Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 116 mm |
| Height | H | 38.1 mm |
| Mass | ≈m | 1 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1148003 | |
| Brand | INA | |
| Base Type | LFCL42 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | hollow section carriage, clearance-free | |
| Short Description | hollow section carriage |

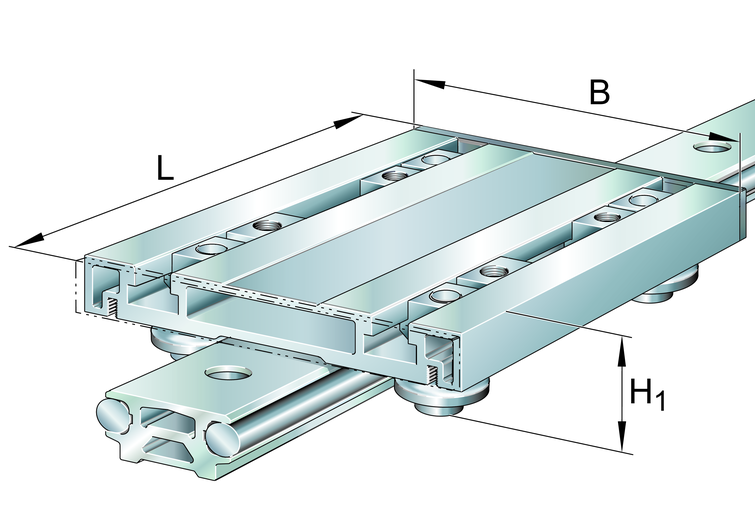

Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length (L) | 150 mm | |
| Width (B) | 116 mm | |
| Height (H) | 38.1 mm | |
| Basic Dynamic Load Rating In Y Direction (Cy) | 10,200 N | |
| Basic Static Load Rating In Y Direction (C0Y) | 5,480 N | |
| Total Height Of Carriage And Rail At Lfs.. M (H) | 33.9 mm | |
| Basic Dynamic Load Rating In Z Direction (Cz) | 16,900 N | |
| Static Moment About Y Axis (M0Y) | 425 Nm | |
| Total Height Of Carriage And Rail At Lfs, C, Ce, Cee, E, Ee, N, Nzz (H) | 39 mm | |
| Static Moment About X Axis (M0X) | 85 Nm | |
| Basic Static Load Rating In Z Direction (C0Z) | 10,000 N | |
| Static Moment About Z Axis (M0Z) | 230 Nm |
