Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KWVE30 | |

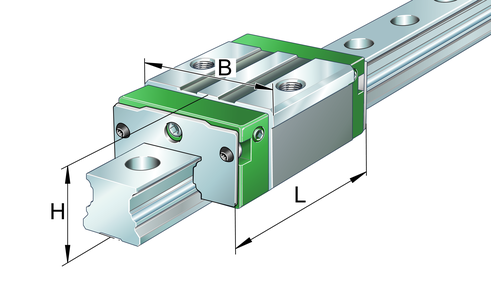

| Width | B | 90 mm |
| Height | H | 42 mm |
| Mass | ≈m | 1.2 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1957542 | |
| Brand | INA | |
| Base Type | KWVE30 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Carriages KWVE..-B-E, standard carriage, four-row, full complement, expanded type | |
| Short Description | Recirculating ball bearing carriage |
Technical Data25 parameters
| Parameter | Symbol | Value |
|---|---|---|

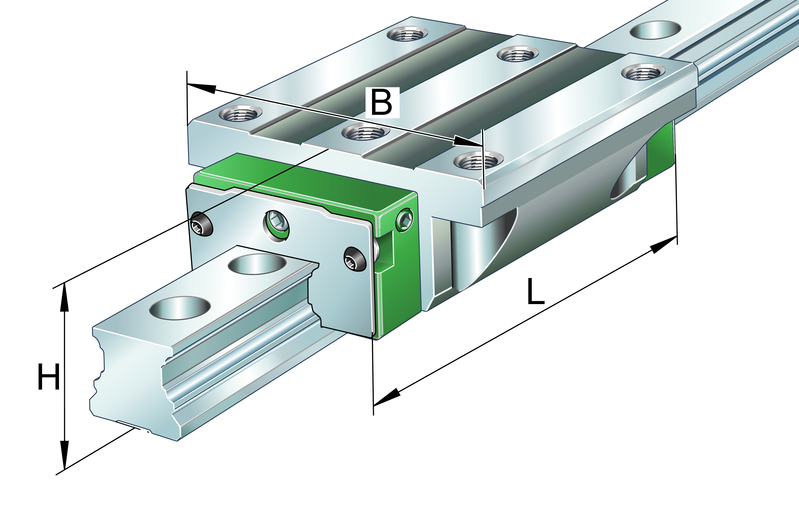

| Overall Length Carriage (L) | 99 mm | |
| Width Carriage (B) | 90 mm | |
| Height System (H) | 42 mm | |
| Dynamic Load Rating (C) | 27,500 N | |
| Basic Static Load Capacity (C0) | 55,000 N | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T G4) | 7 mm | |
| Free Space, System Dimension (H1) | 5.9 mm | |
| Maximum Tightening Torque (K3 Ma) | 41 Nm | |
| Static Moment About Y Axis (M0Y) | 700 Nm | |
| Through Bore (D2) | 8.6 mm | |
| Height Of Bearing Housing (H5) | 6.25 mm | |
| Thread Depth (T5) | 12 mm | |
| Hole Spacing (Jb) | 72 mm | |
| Distance From Locating Edge To Hole (A2) | 9 mm | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T G3) | 7 mm | |
| Position Lubrication Connector (A3) | 11.5 mm | |
| Static Moment About X Axis (M0X) | 970 Nm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 31 mm | |
| Position Lubrication Connector (Jl6) | 21.1 mm | |
| Width Rail (B) | 28 mm | |
| Hole Spacing (Jl) | 40 mm | |
| Position Lubrication Connector (A4) | 7 mm | |
| Carrier Length (L1) | 72 mm | |
| Static Moment About Z Axis (M0Z) | 700 Nm | |
| Screw Head Length (Ls) | 1.65 mm |
