Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KUVE15 | |
| Bore diameter | d | 4.6 mm |
| Width | B | 68 mm |
| Height | H | 21 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2048843 | |
| Brand | INA | |
| Base Type | KUVE15 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

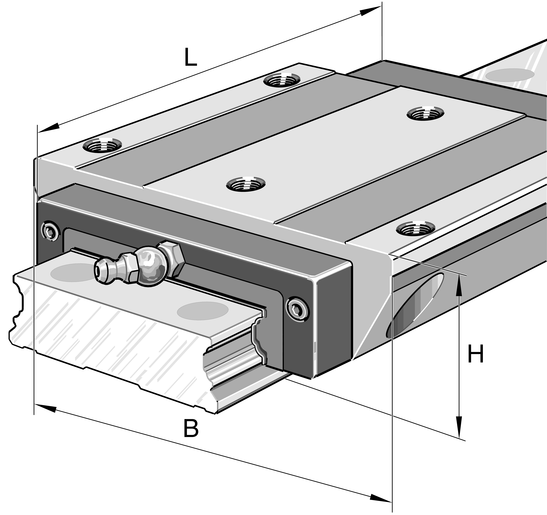

| Construction | Carriages KWVE..-W, wide carriage for linear recirculating ball bearing and guideway assembly | |
| Short Description | Ball monorail guidance system |
Technical Data33 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width Carriage (B) | 68 mm | |
| Height System (H) | 21 mm | |
| Dynamic Load Rating (C) | 7,200 N | |
| Basic Static Load Capacity (C0) | 14,500 N | |
| Distance (Ar Min) | 20 mm | |
| Free Space, System Dimension (H1) | 2.1 mm | |
| Maximum Tightening Torque (K3 Ma) | 5 Nm | |
| Max Length Single Piece Guideway (Lmax) | 2,890 mm | |
| Static Moment About Y Axis (M0Y) | 100 Nm | |
| Through Bore (D2) | 4.5 mm | |
| Maximum Tightening Torque (G2 Ma) | 5.8 Nm | |
| Height Of Bearing Housing (H5) | 4.5 mm | |
| Thread Depth (T5) | 7 mm | |
| Overall Length Carriage (L) | 55.6 mm | |
| Hole Spacing (Jb) | 60 mm | |
| Distance (A5) | 7.5 mm | |
| Distance From Locating Edge To Hole (A2) | 4 mm | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T G3) | 4 mm | |
| Distance (Ar Max) | 44 mm | |
| Position Lubrication Connector (A3) | 3.6 mm | |
| Static Moment About X Axis (M0X) | 332 Nm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 15.5 mm | |
| Width Rail (B) | 37 mm | |
| Increment (Jb) | 22 mm | |
| Tightening Torque (K1 Ma) | 5 Nm | |
| Distance (Al Max) | 44 mm | |
| Distance (Al Min) | 20 mm | |
| Height (H) | 12.9 mm | |
| Hole Spacing (Jl) | 29 mm | |
| Maximum Tightening Torque (K6 Ma) | 2 Nm | |
| Bore Diameter (D1) | 4.6 mm | |
| Carrier Length (L1) | 39.8 mm | |
| Static Moment About Z Axis (M0Z) | 100 Nm |
