Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KUEM12 | |
| Width | B | 40 mm |
| Height | H | 8.5 mm |
| Mass | ≈m | 1.761 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2881486 | |
| Brand | INA | |
| Base Type | KUEM12 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

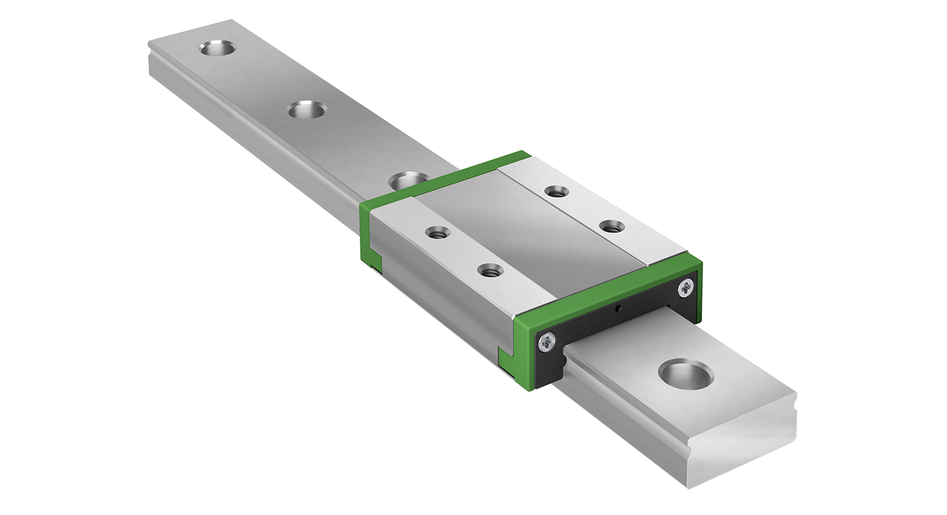

| Construction | Miniature-Carriage, Wide-Long design; with Miniature guideway, Wide design | |
| Short Description | Miniature Carriage, Standard with Miniature-Guideway, Standard |
Technical Data27 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width Carriage (B) | 40 mm | |
| Height (H) | 8.5 mm | |
| Dynamic Load Rating (C) | 4,250 N | |
| Basic Static Load Capacity (C0) | 8,300 N | |
| Distance (Ar Min) | 6 mm | |
| Length (H1) | 4 mm | |
| Free Space, System Dimension (H1) | 3 mm | |
| Max Length Single Piece Guideway (Lmax) | 2,000 mm | |
| Height System (H) | 14 mm | |
| Static Moment About Y Axis (M0Y) | 57.9 Nm | |
| Thread Depth (T5) | 3.5 mm | |
| Increment (Jl) | 40 mm | |
| Overall Length Carriage (L) | 58 mm | |
| Hole Spacing (Jb) | 28 mm | |
| Distance From Locating Edge To Hole (A2) | 6 mm | |
| Distance (Ar Max) | 34 mm | |
| Position Lubrication Connector (A3) | 2.7 mm | |
| Static Moment About X Axis (M0X) | 96.8 Nm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 8 mm | |
| Width Rail (B) | 24 mm | |
| Tightening Torque (K1 Ma) | 1.1 Nm | |
| Distance (Al Max) | 34 mm | |
| Distance (Al Min) | 6 mm | |
| Hole Spacing (Jl) | 28 mm | |
| Carrier Length (L1) | 52 mm | |
| Maximum Tightening Torque (G2 Ma) | 1.1 Nm | |
| Static Moment About Z Axis (M0Z) | 57.9 Nm |
