Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 40 mm |
| Outside diameter | D | 62 mm |
| Mass | ≈m | 0.34 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 419590 | |
| Brand | INA | |
| Base Type | KS40 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear ball bearings KS.., heavy load range, gap seals on both sides | |
| Short Description | Linear Ball Bearing |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|

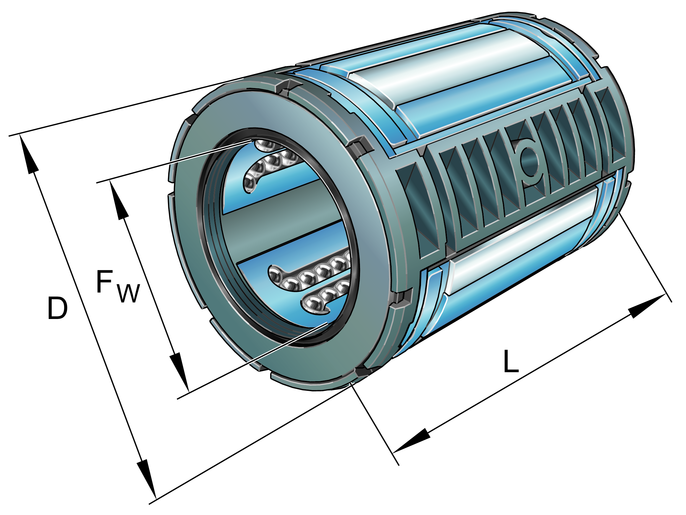

| Length Of Carriage (L) | 0.08 m | |
| Bore Diameter (Fw) | 40 mm | |
| Outside Diameter (D) | 62 mm | |
| Load Capacity Dyn. (Cmax) | 10,200 N | |
| Load Capacity Stat. (C0 Max) | 9,600 N | |
| Load Capacity Stat. (C0 Min) | 7,200 N | |
| Angle Of Sector Opening (A10) | 1.5 mm | |
| Mounting Dimension (N4) | 3 mm | |
| Max (L2) | 60.3 mm | |
| Mounting Dimension (N1) | 3.5 mm | |
| Load Capacity Dyn. (Cmin) | 8,800 N |
