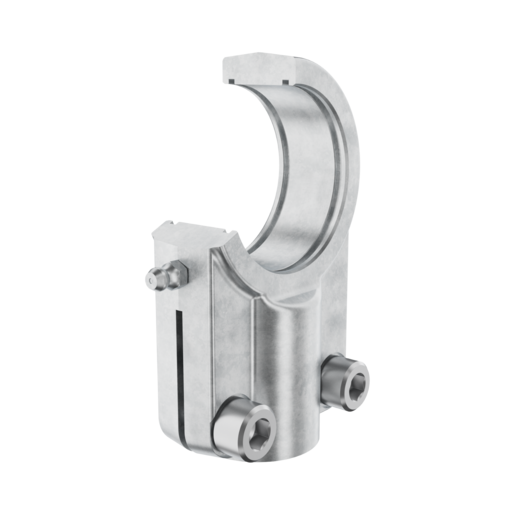

INA KO.GIHNRK20-0860-C

Rod end housing technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Outside diameterD: 35 mm
Mass≈m: 0.28715 kg
Outside Diameter (D): 35 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Series		KO.GIHNRK
Outside diameter	D	35 mm
Mass	≈m	0.28715 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2635998
Brand		INA
Base Type		KO.GIHNRK

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Hydraulic rod end, with thread clamping device, right hand thread, without plain bearing
Short Description		Rod end housing

Technical Data1 parameter

Technical Data
Parameter	Symbol	Value
Outside Diameter (D)		35 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA KO.GIHNRK20-0860-C
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
