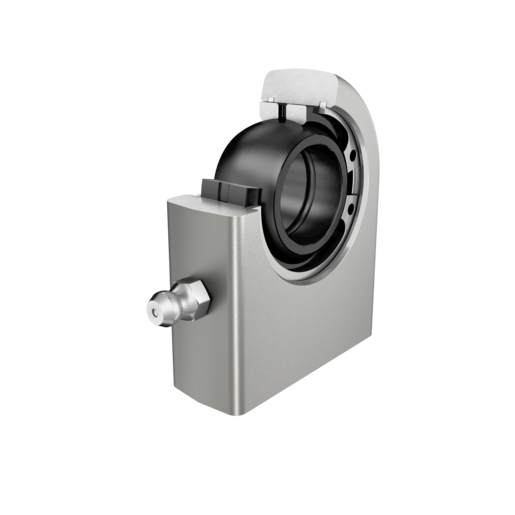

INA KO.GF35-0860

Rod end housing technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Outside diameterD: 55 mm
WidthB: 102.5 mm
Mass≈m: 1.3 kg
Width (B): 102.5 mm
Outside Diameter (D): 55 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		KO.GF
Outside diameter	D	55 mm
Width	B	102.5 mm
Mass	≈m	1.3 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2631668
Brand		INA
Base Type		KO.GF

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Hydraulic rod end, with rectangular welding face, without plain bearing
Short Description		Rod end housing

Technical Data2 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		102.5 mm
Outside Diameter (D)		55 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA KO.GF35-0860
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
