Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KN20 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 32 mm |
| Mass | ≈m | 0.0624 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 419547 | |
| Brand | INA | |
| Base Type | KN20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear ball bearings KN..-B, Lightweight range, closed design, with relubrication facility, adjustable angle | |
| Short Description | Linear Ball Bearing |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|

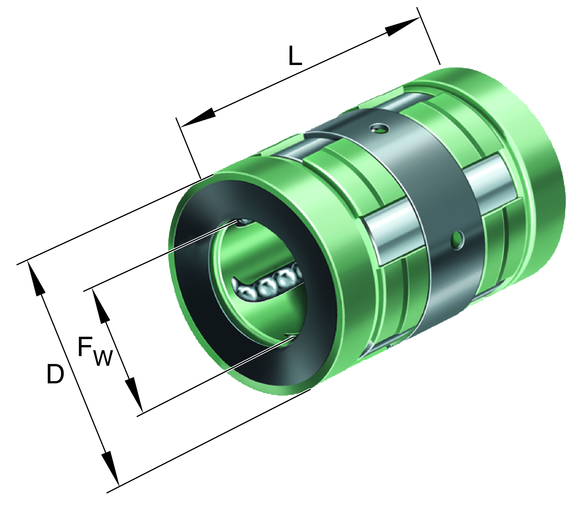

| Length Of Carriage (L) | 0.045 m | |
| Bore Diameter (Fw) | 20 mm | |
| Outside Diameter (D) | 32 mm | |
| Load Capacity Dyn. (Cmax) | 1,830 N | |
| Load Capacity Stat. (C0 Max) | 1,570 N | |
| Load Capacity Stat. (C0 Min) | 1,230 N | |
| Mounting Dimension (N4) | 3 mm | |
| Max (L2) | 31.2 mm | |
| Load Capacity Dyn. (Cmin) | 1,730 N | |
| Mounting Dimension T 4 Tec (T4) | 0.9 mm |
