Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 44 mm |
| Height | H | 30 mm |
| Mass | ≈m | 0.17 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2892945 | |
| Brand | INA |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Short & slim four-row linear recirculating ball bearing carriage with standard end plate and guideway assembly | |

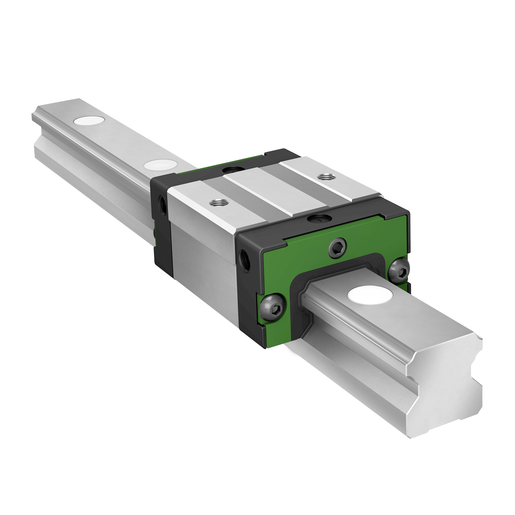

| Short Description | Ball monorail guidance system |
Technical Data32 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width Carriage (B) | 44 mm | |
| Height System (H) | 30 mm | |
| Dynamic Load Rating (C) | 9,300 N | |
| Basic Static Load Capacity (C0) | 15,000 N | |
| Distance (Ar Min) | 10 mm | |
| Length (H1) | 9.3 mm | |
| Free Space, System Dimension (H1) | 5 mm | |
| Max Length Single Piece Guideway (Lmax) | 3,900 mm | |
| Thread Depth (T5) | 6.5 mm | |
| Increment (Jl) | 60 mm | |
| Overall Length Carriage (L) | 53.9 mm | |
| Hole Spacing (Jb) | 32 mm | |
| Distance From Locating Edge To Hole (A2) | 6 mm | |
| Distance (Ar Max) | 50 mm | |
| Position Lubrication Connector (A3) | 5.7 mm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 12 mm | |
| Guideway Mass Per M (Guideway Mas) | 2.3 kg/m | |
| Tightening Torque (G1 Ma) | 17 Nm | |
| Width Rail (B) | 20 mm | |
| Tightening Torque (K1 Ma) | 9.7 Nm | |
| Distance (Al Max) | 50 mm | |
| Distance (Al Min) | 10 mm | |
| Height (H) | 18 mm | |
| Dynamic Moment Rating About Y Axis (M0Y) | 78 Nm | |
| Dynamic Moment Rating About Z Axis (M0Z) | 78 Nm | |
| Carrier Length (L1) | 32.1 mm | |
| Static Moment Rating About X Axis (M0X) | 163 Nm | |
| Static Moment Rating About Y Axis (M0Y) | 83 Nm | |
| Static Moment Rating About Z Axis (M0Z) | 83 Nm | |
| Dynamic Moment Rating About X Axis (M0X) | 95 Nm | |
| Maximum Tightening Torque (G2 Ma) | 9.7 Nm | |
| Screw Head Length (Ls) | 0.5 mm |
