Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 12 mm |
| Outside diameter | D | 22 mm |
| Mass | ≈m | 0.03654 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 419443 | |
| Brand | INA | |
| Base Type | KB12 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear ball bearings KB.., machined range, corrosion-resistant design possible | |
| Short Description | Linear Ball Bearing |

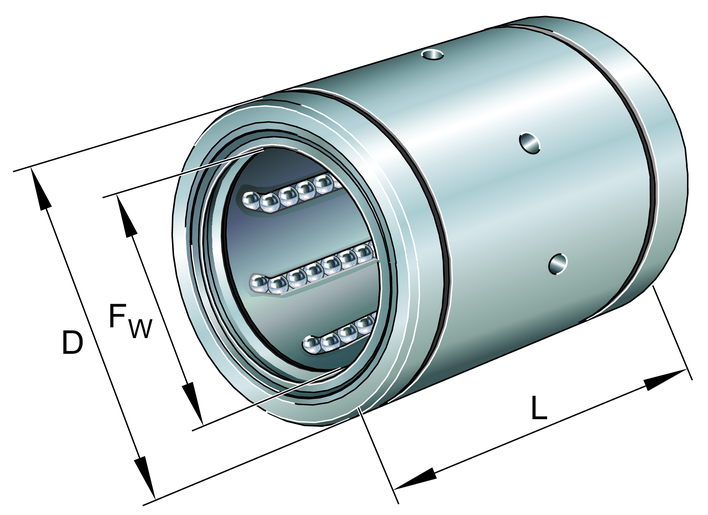

Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.032 m | |
| Bore Diameter (Fw) | 12 mm | |
| Outside Diameter (D) | 22 mm | |
| Load Capacity Dyn. (Cmax) | 640 N | |
| Load Capacity Stat. (C0 Max) | 570 N | |
| Load Capacity Stat. (C0 Min) | 385 N | |
| Max (L2) | 22.6 mm | |
| Load Capacity Dyn. (Cmin) | 540 N |
