Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 30 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2266567 | |
| Brand | INA | |
| Base Type | HW30 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

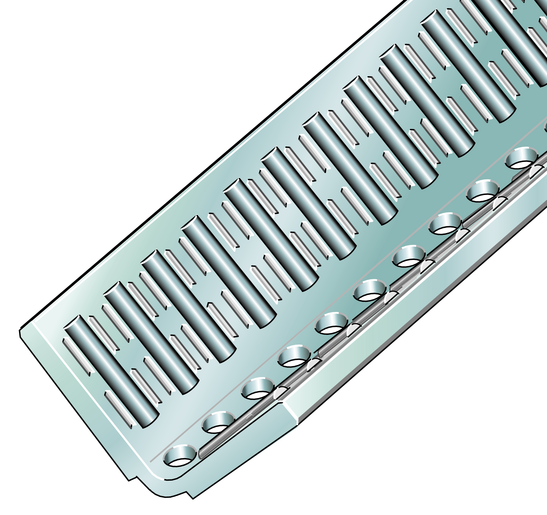

| Construction | angled needle roller flat cage | |
| Short Description | Flat cage |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 30 mm | |
| Length Rolling Element (Lw) | 17.8 mm | |
| Rolling Element Diameter (Dw) | 3.5 mm | |
| Max. Length (Lk Max) | 4,000 mm | |
| Dynamic Load Rating (C) | 82,700 N | |
| Basic Static Load Capacity (C0) | 268,700 N |
