Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GWN30 | |
| Width | B | 87 mm |
| Height | H | 70 mm |
| Mass | ≈m | 0.45 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1148642 | |
| Brand | INA | |
| Base Type | GWN30 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

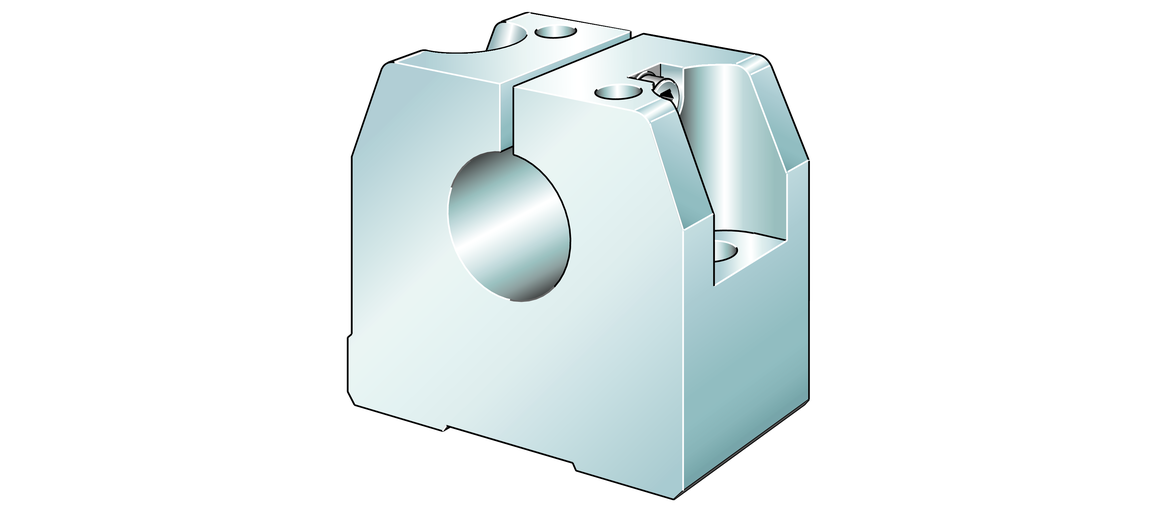

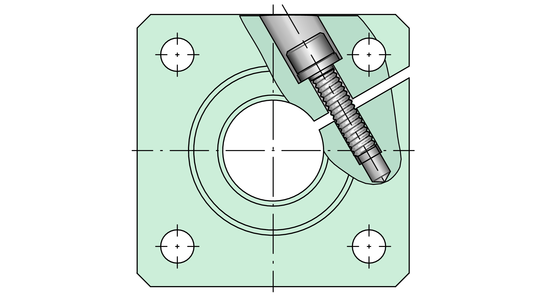

| Construction | Shaft block | |
| Short Description | Shaft block |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.04 m | |
| Total Width (B) | 87 mm | |
| Total Height (H) | 70 mm | |
| Lower Tolerance (Tol A5) | 0.01 mm | |
| Upper Tolerance (Tol A5) | 0.01 mm | |
| Diameter (D) | 30 mm | |
| Mounting Dimension (A5) | 43.5 mm | |
| Mounting Dimension (H4) | 46.2 mm | |
| Mounting Dimension (B1) | 63 mm | |
| Mounting Dimension (N4) | 8 mm | |
| Mounting Dimension (H6) | 4 mm | |
| Mounting Dimension (Jb) | 64 mm | |
| Mounting Dimension (N3) | 18 mm | |
| Lower Tolerance (Tol H2) | 0.01 mm | |
| Mounting Dimension (N1) | 10.5 mm | |
| Upper Tolerance (Tol H2) | 0.01 mm | |
| Mounting Dimension (Jb1) | 45 mm | |
| Mounting Dimension (T5) | 26 mm | |
| Width Across Flat (W) | 6 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm | |
| Mounting Dimension (H2) | 40 mm | |
| Height Of Shaft Support Blocks (H5) | 9.3 mm | |
| Mounting Dimension (Jl) | 26 mm |
