Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GWH12 | |
| Width | B | 40 mm |
| Height | H | 33 mm |
| Mass | ≈m | 0.05 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1155781 | |
| Brand | INA | |
| Base Type | GWH12 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

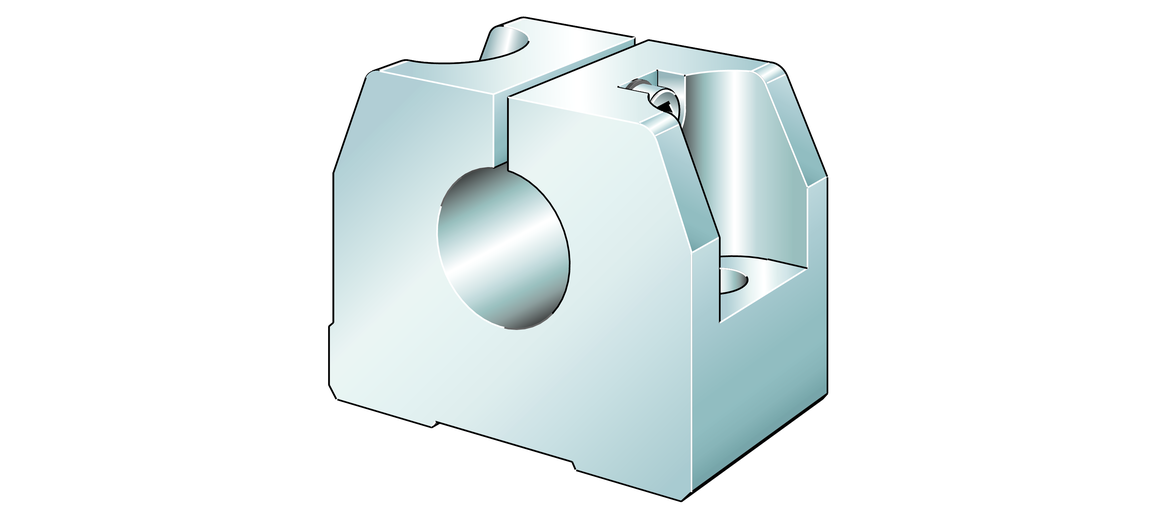

| Construction | Shaft block | |
| Short Description | Shaft block |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.018 m | |
| Total Width (B) | 40 mm | |
| Total Height (H) | 33 mm | |
| Diameter (D) | 12 mm | |
| Mounting Dimension (A5) | 20 mm | |
| Mounting Dimension (H4) | 25.1 mm | |
| Mounting Dimension (B1) | 32 mm | |
| Mounting Dimension (H6) | 16 mm | |
| Mounting Dimension (Jb) | 27 mm | |
| Mounting Dimension (N3) | 11 mm | |
| Lower Tolerance (Tol H2) | 0.1 mm | |
| Mounting Dimension (N1) | 5.3 mm | |
| Upper Tolerance (Tol H2) | 0.1 mm | |
| Mounting Dimension (T5) | 13 mm | |
| Width Across Flat (W) | 3 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm | |
| Mounting Dimension (H2) | 19 mm | |
| Height Of Shaft Support Blocks (H5) | 5 mm |
