Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 35 mm |
| Outside diameter | D | 82 mm |
| Width | B | 102 mm |
| Basic dynamic load rating | C | 104 kN |
| Basic static load rating | C0 | 128 kN |
| Mass | ≈m | 1.02 kg |
| Minimum operating temperature | Tmin | -60 °C |
| Maximum operating temperature | Tmax | 200 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2629885 | |
| Brand | INA | |
| Base Type | GK35-DO |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Hydraulic rod end according to ISO24652 and DIN ISO 12240-4, dimension series E, form S with circular weld end, maintenance required, sliding pair steel/steel, open | |

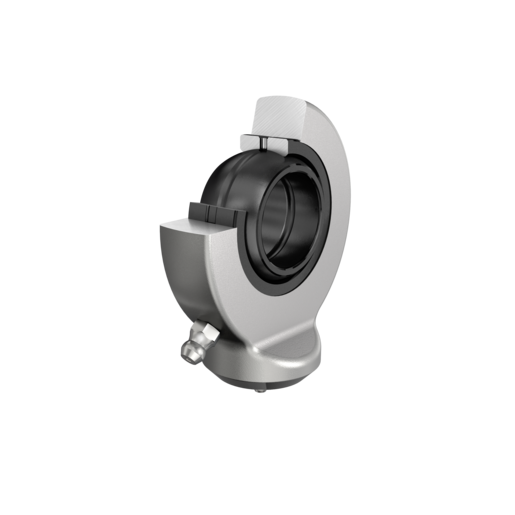

| Short Description | Rod end |
Technical Data25 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 35 mm | |
| Outer Eye Diameter (D2) | 82 mm | |
| Total Length Welding Head (L6) | 102 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 104,000 N | |
| Basic Static Load Rating, Radial (C0R) | 128,000 N | |
| Operating Temperature Min. (Tmin) | -60 °C | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Outside Diameter Bearing (D) | 55 mm | |
| Width Of The Rod End (C1) | 21 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 0.6 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0.012 mm | |
| Distance Drilling With/Shaft Start (L7) | 42 mm | |
| Outer Flange Diameter Inner Ring (D1) | 39.8 mm | |
| Radial Clearance, Maximum (Grmax) | 0.1 mm | |
| Radial Clearance, Minimum (Grmin) | 0.037 mm | |
| Shank Length Welding Head (H2) | 61 mm | |
| Ball Diameter (Dk) | 47 mm | |
| Centering Pin Diameter (D7) | 4 mm | |
| Chamfer (L8) | 4 mm | |
| Width Inner Ring (B) | 25 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | -0.012 mm | |
| Welding Shank Diameter (D 6) | 47 mm | |
| Tilt Angle (Α) | 6 ° | |
| Width Inner Ring, Lower Tolerance (But) | -0.12 mm |
