Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GIHRK25-DO-C | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 56 mm |
| Width | B | 80 mm |
| Basic dynamic load rating | C | 62.8 kN |
| Basic static load rating | C0 | 65.5 kN |
| Mass | ≈m | 0.49 kg |
| Minimum operating temperature | Tmin | -60 °C |
| Maximum operating temperature | Tmax | 200 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2875226 | |
| Brand | INA | |
| Base Type | GIHRK25-DO-C |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

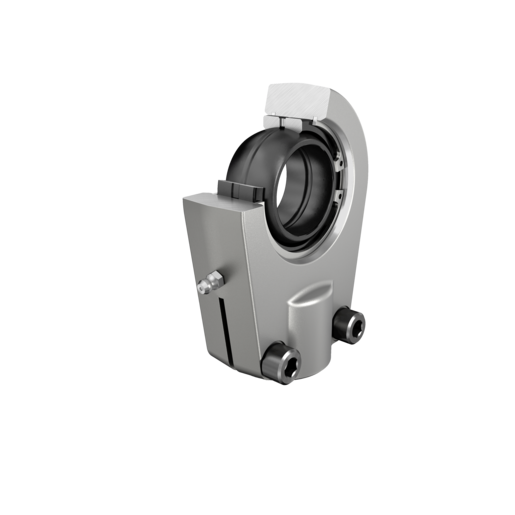

| Construction | Hydraulic rod end, with thread clamping device, right hand thread, requiring maintenance, sliding contact surface: steel/steel, open design | |
| Short Description | Rod end |
Technical Data26 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 25 mm | |
| Outer Eye Diameter (D2) | 56 mm | |
| Total Length Internal Thread Head (L4) | 80 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 62,800 N | |
| Basic Static Load Rating, Radial (C0R) | 65,500 N | |
| Shank Length Internal Thread Head (H1) | 50 mm | |
| Operating Temperature Min. (Tmin) | -60 °C | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Outside Diameter Bearing (D) | 42 mm | |
| Width Of The Rod End (C1) | 23 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 0.6 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0 mm | |
| Distance Drilling With/Shaft Start (L7) | 25 mm | |
| Outer Flange Diameter Inner Ring (D1) | 29.3 mm | |
| Radial Clearance, Maximum (Grmax) | 0.1 mm | |
| Radial Clearance, Minimum (Grmin) | 0.025 mm | |
| Shank Diameter, Large (D5) | 46 mm | |
| Ball Diameter (Dk) | 35.5 mm | |
| Width Inner Ring (B) | 20 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | -0.01 mm | |
| Tilt Angle (Α) | 7 ° | |
| Width Inner Ring, Lower Tolerance (But) | -0.12 mm | |
| Shank Diameter (D4) | 25 mm | |
| Tightening Torque (Ma) | 32 Nm | |
| Thread Length Internal Thread (L3) | 17 mm |
