Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GE12-AW-A | |
| Bore diameter | d | 12 mm |
| Outside diameter | D | 35 mm |
| Width | B | 9.3 mm |
| Height | H | 13 mm |
| Mass | ≈m | 0.072 kg |
| Minimum operating temperature | Tmin | -50 °C |
| Maximum operating temperature | Tmax | 150 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 347610 | |
| Brand | INA | |
| Base Type | GE12-AW-A | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

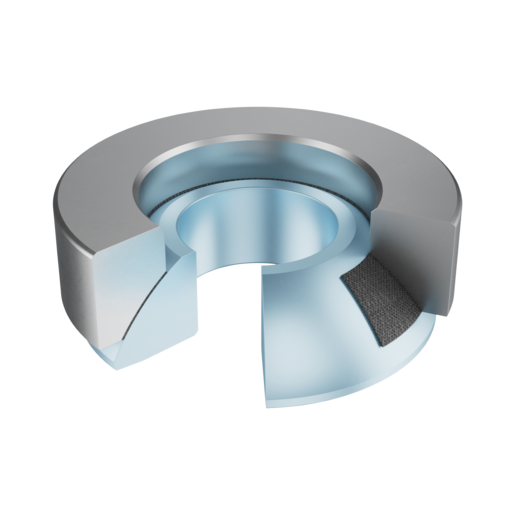

| Construction | Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design | |
| Short Description | Spherical plain bearing |
Technical Data29 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 12 mm | |
| Outside Diameter Bearing (D) | 35 mm | |
| Width Inner Ring (B) | 9.3 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 97,300 N | |
| Basic Static Load Rating, Axial (C0A) | 162,000 N | |
| Height (T) | 13 mm | |
| Operating Temperature Min. (Tmin) | -50 °C | |
| Height, Upper Tolerance (Tot) | 0 mm | |
| Operating Temperature Max. (Tmax) | 150 °C | |
| Plane Surface Spacing (S) | 8 mm | |
| Housing Connection Diameter (Da Min) | 21.5 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 0.6 mm | |
| Outer Eye Diameter (D2) | 32 mm | |
| Outside Diameter, Upper Tolerance (Dot) | 0 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0 mm | |
| Width, Outer Ring (C) | 9 mm | |
| Width Outer Ring, Lower Tolerance (Cot) | -0.24 mm | |
| Edge Spacing (R2Smin) | 0.2 mm | |
| Ball Diameter (Dk) | 37 mm | |
| Width Outer Ring, Upper Tolerance (Cut) | 0 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | -0.008 mm | |
| Tilt Angle (Α) | 9 ° | |
| Width Inner Ring, Lower Tolerance (But) | -0.24 mm | |
| Bore Diameter Of Housing Washer (D1) | 19.5 mm | |
| Connection Measure Inner Ring (Da Max) | 24 mm | |
| Front Surface Diameter Of Shaft Washer (D3) | 24 mm | |
| Outside Diameter, Lower Tolerance (Dut) | -0.011 mm | |
| Height, Lower Tolerance (Tut) | -0.5 mm |
