Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm |
| Outside diameter | D | 135 mm |
| Width | B | 227.5 mm |
| Basic dynamic load rating | C | 691 kN |
| Basic static load rating | C0 | 405 kN |
| Mass | ≈m | 6.4 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2871348 | |
| Brand | INA | |
| Base Type | GAR50-FW-2TS |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

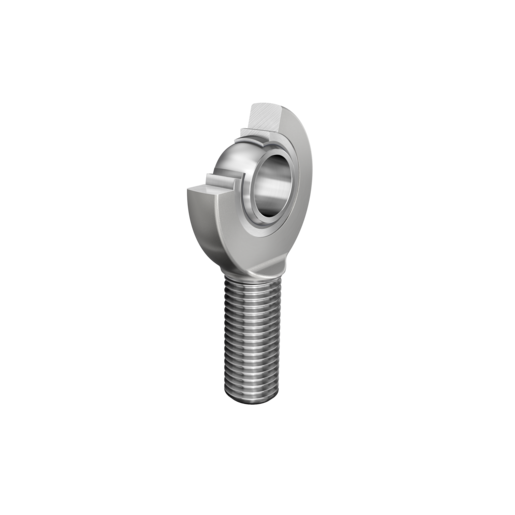

| Construction | Rod end GAR..-FW-2TS, external threads, maintenance-free | |
| Short Description | Rod end |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 50 mm | |
| Outer Eye Diameter (D2) | 135 mm | |
| Total Length (L2) | 227.5 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 691,000 N | |
| Basic Static Load Rating, Radial (C0R) | 405,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Outside Diameter Bearing (D) | 90 mm | |
| Width Of The Rod End (C1) | 38 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 0.6 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0 mm | |
| Distance Drilling With/Shaft Start (L7) | 75 mm | |
| Outer Flange Diameter Inner Ring (D1) | 57.1 mm | |
| Radial Clearance, Maximum (Grmax) | 0.06 mm | |
| Radial Clearance, Minimum (Grmin) | 0 mm | |
| Thread Length (L1) | 115 mm | |
| Total Length (L 2) | 227.5 mm | |
| Length Of Thread (H) | 210 mm | |
| Width Inner Ring (B) | 56 mm | |
| Ball Diameter (Dk) | 80 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | -0.012 mm | |
| Tilt Angle (Α) | 17 ° | |
| Width Inner Ring, Lower Tolerance (But) | -0.12 mm |
