Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GAKL5-PW | |
| Bore diameter | d | 5 mm |
| Outside diameter | D | 18 mm |
| Width | B | 42 mm |
| Basic dynamic load rating | C | 6 kN |
| Basic static load rating | C0 | 4.9 kN |
| Mass | ≈m | 0.02 kg |
| Minimum operating temperature | Tmin | -50 °C |
| Maximum operating temperature | Tmax | 200 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 346108 | |
| Brand | INA | |
| Base Type | GAKL5-PW | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

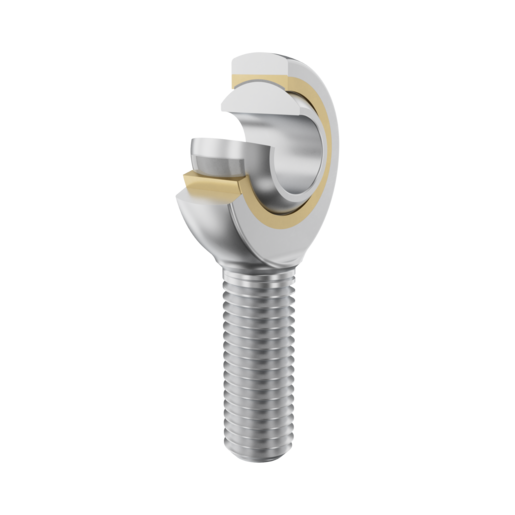

| Construction | Rod end GAKL..-PW, external threads, maintenance-free | |
| Short Description | Rod end |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 5 mm | |
| Outer Eye Diameter (D2) | 18 mm | |
| Total Length (L2) | 42 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 6,000 N | |
| Basic Static Load Rating, Radial (C0R) | 4,900 N | |
| Operating Temperature Min. (Tmin) | -50 °C | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Outside Diameter Bearing (D) | 13 mm | |
| Width Of The Rod End (C1) | 6 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 0.3 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0.012 mm | |
| Outer Flange Diameter Inner Ring (D1) | 7.7 mm | |
| Radial Clearance, Maximum (Grmax) | 0.035 mm | |
| Radial Clearance, Minimum (Grmin) | 0 mm | |
| Thread Length (L1) | 19 mm | |
| Total Length (L 2) | 42 mm | |
| Length Of Thread (H) | 33 mm | |
| Width Inner Ring (B) | 8 mm | |
| Ball Diameter (Dk) | 11.112 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | 0 mm | |
| Tilt Angle (Α) | 13 ° | |
| Width Inner Ring, Lower Tolerance (But) | -0.12 mm |
