Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 10 mm |
| Mass | ≈m | 0.002 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1134000 | |
| Brand | INA |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | flat cage, single row | |

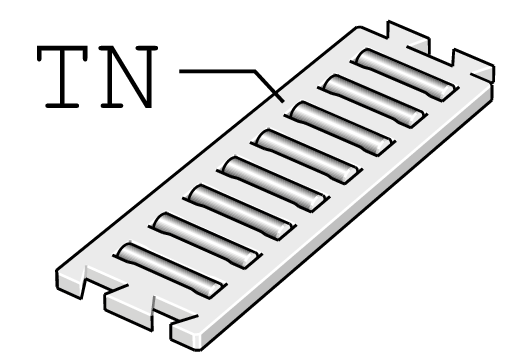

| Short Description | Flat cage |
Technical Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length (Lke) | 32 mm | |
| Width (B) | 10 mm | |
| Min. (Eb1) | 7 mm | |
| Length Rolling Element (Lw) | 6.8 mm | |
| Rolling Element Diameter (Dw) | 2 mm | |
| Number Of Rolling Elements Per Row (Ze) | 7 | |
| Tolerance (Tol Eb) | 0.2 mm | |
| Dynamic Load Rating (C) | 21,300 N | |
| Basic Static Load Capacity (C0) | 61,900 N |
