Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 67.5 mm |
| Width | B | 20.7 mm |
| Height | H | 19.7 mm |
| Basic dynamic load rating | C | 13.3 kN |
| Basic static load rating | C0 | 35 kN |
| Mass | ≈m | 0.73 kg |
| Minimum operating temperature | Tmin | -25 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4126664 | |
| Brand | INA | |
| Base Type | F-696194.XZU-25H |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

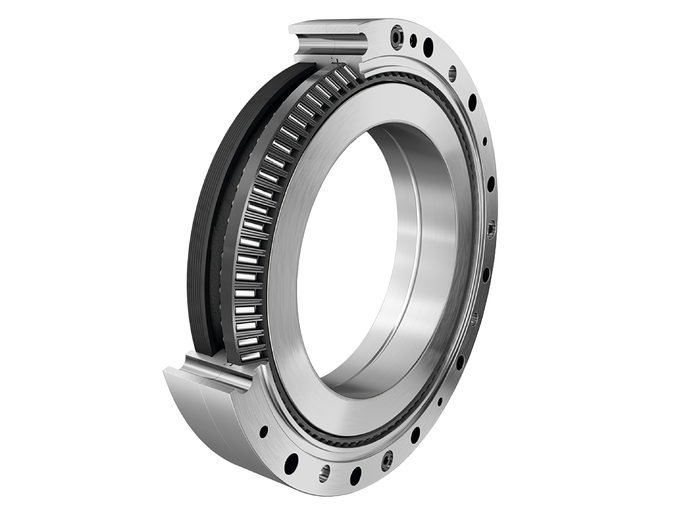

| Short Description | Slewing ring |
Technical Data14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 67.5 mm | |
| Total Height (H) | 20.7 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 13,300 N | |
| Basic Static Load Rating, Radial (C0R) | 35,000 N | |
| Basic Dynamic Load Rating, Axial (Ca) | 18,800 N | |
| Basic Static Load Rating, Axial (C0A) | 88,000 N | |
| Height (H) | 19.7 mm | |
| Operating Temperature Min. (Tmin) | -25 °C | |
| Pitch Circle Diameter Fixing Holes (La) | 102 mm | |
| Operating Temperature Max. (Tmax) | 80 °C | |
| Pitchcircle Diameter Fixing Holes Inner Ring (Li) | 77 mm | |
| Diameter Centring Outer Ring (Da) | 110 mm | |
| Diameter Centring Inner Ring (Dizt) | 67 mm | |
| Number Of Fixing Holes In Outer Ring (Na) | 12 |
