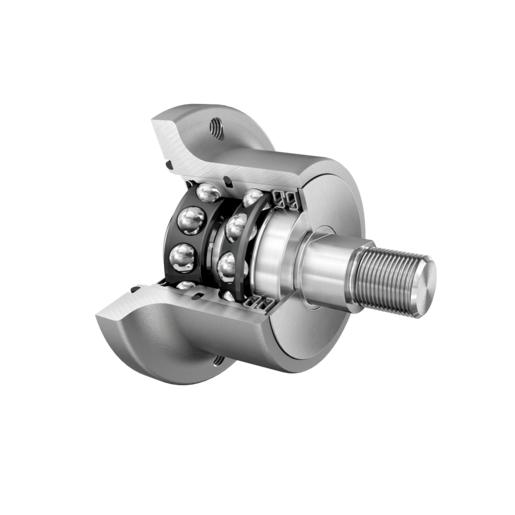

INA F-673270.04.TILL

Bearing technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 12 mm
Mass≈m: 2.61 kg
Length (L): 25.5 mm
Width (B): 12 mm
Diameter Shaft (D): 28 mm
Total Height Unit (B): 102 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications2 parameters

Core specifications
Parameter	Symbol	Value
Width	B	12 mm
Mass	≈m	2.61 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1709998
Brand		INA
Base Type		F-673270.04.TILL

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Schaeffler Field Pro Disk Harrow Units
Short Description		Bearing

Technical Data6 parameters

Technical Data
Parameter	Symbol	Value
Length (L)		25.5 mm
Width (B)		12 mm
Diameter Shaft (D)		28 mm
Total Height Unit (B)		102 mm
Thickness Of Flange (B1)		12 mm
Diameter Flange (D1)		117 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA F-673270.04.TILL
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
