Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 710 mm |
| Outside diameter | D | 1000 mm |
| Width | B | 500 mm |
| Basic dynamic load rating | C | 54200 kN |
| Basic static load rating | C0 | 81300 kN |
| Mass | ≈m | 1428 kg |
| Minimum operating temperature | Tmin | -40 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 846079 | |
| Brand | INA | |
| Base Type | F-605990.GE |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Special plain bearing , information on request | |

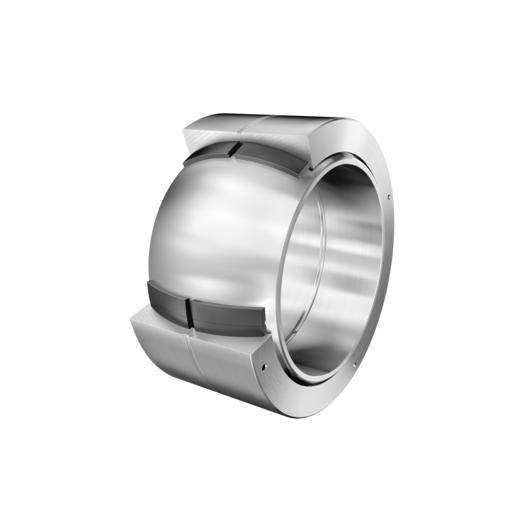

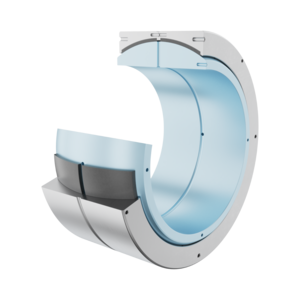

| Short Description | Spherical plain bearing |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Bearing (D) | 710 mm | |
| Outside Diameter Bearing (D) | 1,000 mm | |
| Width Inner Ring (B) | 500 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 54,200,000 N | |
| Basic Static Load Rating, Radial (C0R) | 81,300,000 N | |
| Operating Temperature Min. (Tmin) | -40 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Housing Connection Diameter (Da Min) | 849 mm | |
| Width Inner Ring, Upper Tolerance (Bot) | 0 mm | |
| Edge Spacing (R1Smin) | 3 mm | |
| Outside Diameter, Upper Tolerance (Dot) | 0 mm | |
| Bore Diameter Bearing, Upper Tolerance (Dot) | 0 mm | |
| Radial Clearance, Maximum (Grmax) | 0.17 mm | |
| Radial Clearance, Minimum (Grmin) | 0 mm | |
| Width, Outer Ring (C) | 475 mm | |
| Width Outer Ring, Lower Tolerance (Cot) | -1.2 mm | |
| Edge Spacing (R2Smin) | 6 mm | |
| Ball Diameter (Dk) | 912 mm | |
| Width Outer Ring, Upper Tolerance (Cut) | 0 mm | |
| Bore Diameter Bearing, Lower Tolerance (Dut) | -0.075 mm | |
| Tilt Angle (Α) | 6 ° | |
| Width Inner Ring, Lower Tolerance (But) | -1 mm | |
| Connection Measure Inner Ring (Da Max) | 762 mm | |
| Outside Diameter, Lower Tolerance (Dut) | -0.1 mm |
