Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | SGL105130 | |
| Bore diameter | d | 105 mm |
| Width | B | 13 mm |
| Basic dynamic load rating | C | 28.5 kN |
| Basic static load rating | C0 | 52 kN |
| Reference speed | nref | 2000 r/min |
| Limiting speed | nG | 600 r/min |
| Mass | ≈m | 0.263 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 409123 | |
| Brand | INA | |
| Base Type | SGL105130 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

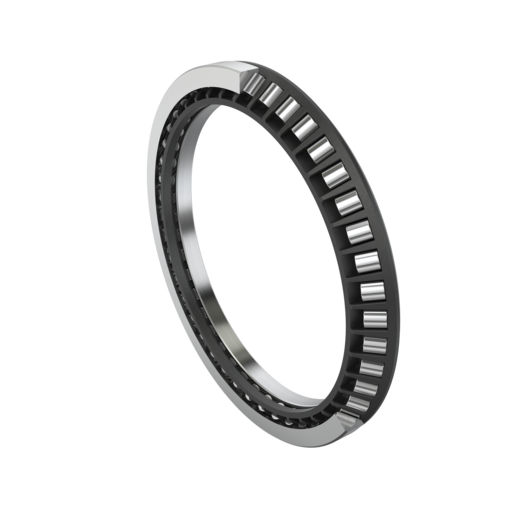

| Construction | Angular contact roller bearing | |
| Short Description | Angular contact roller bearing |
Technical Data20 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Height (H) | 13 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 28,500 N | |
| Basic Static Load Rating, Radial (C0R) | 52,000 N | |
| Basic Static Load Rating, Axial (C0A) | 260,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Outside Diameter Inner Ring (D1) | 118.5 mm | |
| Limiting Speed (Ng) | 600 1/min | |
| Basic Dynamic Load Rating, Axial (Ca) | 68,000 N | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Maximum Diameter Of Housing Shoulde (Da) | 116.5 mm | |
| Reference Speed (Nϑr) | 2,000 1/min | |
| Minimum Distance (S) | 1.5 mm | |
| Outside Diamater (D) | 130 mm | |
| Fatigue Load Limit, Axial (Cua) | 24,400 N | |
| Minimum Shaft Shoulder (Db) | 118.5 mm | |
| Fatigue Limit Load, Radial (Cur) | 6,000 N | |
| Bore Diameter Outer Ring (D1) | 116.5 mm | |
| Bore Diameter (D) | 105 mm | |
| Contact Point Distance (A) | 58.75 mm | |
| Housing Undercut For Cage (Dbmin) | 131 mm |
