Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 88.9 mm |
| Outside diameter | D | 101.6 mm |
| Width | B | 6.35 mm |
| Basic dynamic load rating | C | 5.3 kN |
| Basic static load rating | C0 | 7.9 kN |
| Limiting speed | nG | 3850 r/min |
| Mass | ≈m | 0.08 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 367055 | |
| Brand | INA | |
| Base Type | CSXA035 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

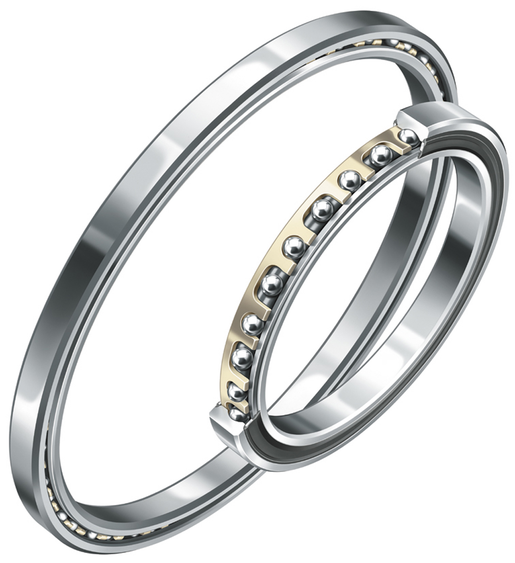

| Construction | Four point contact bearing, Thin section bearing CSXA, brass sheet metal cage | |
| Short Description | Four-point contact bearing |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 88.9 mm | |
| Outside Diameter (D) | 101.6 mm | |
| Width (B) | 6.35 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 5,300 N | |
| Basic Static Load Rating, Radial (C0R) | 7,900 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 3,850 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Shoulder Diameter Inner Ring (D1) | 93.6 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.6 mm | |
| Shoulder Diameter Outer Ring (D1) | 96.9 mm | |
| Contact Angle (Α) | 30 ° |
