Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | BKE.TKVD45 | |
| Width | B | 85 mm |
| Height | H | 70 mm |
| Mass | ≈m | 5.2 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1159692 | |
| Brand | INA | |
| Base Type | BKE.TKVD45 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

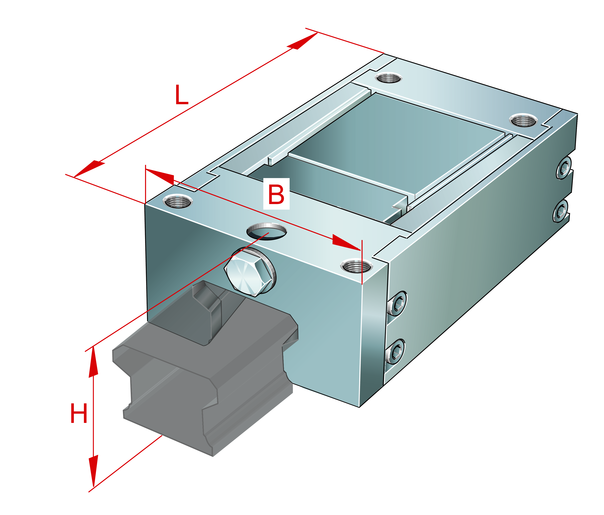

| Construction | Braking and clamping element BKE.TKVD..-H, high design, hydraulic connector on end face, for four-row linear recirculating ball bearing and guideway assembly | |
| Short Description | Braking/clamping element |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Braking And Clamping Element (L) | 141 mm | |
| Width Of Braking And Clamping Element (B) | 85 mm | |
| Height Sytem (H) | 70 mm | |
| Clamping Force (Clamping For) | 4,300 N | |
| Space (System) (H1) | 13 mm | |
| Distance (Al2) | 5 mm | |
| Hole Pattern (Jb) | 70 mm | |
| Hole Pattern (Jl) | 113 mm | |
| Distance (A1) | 15 mm | |
| Hole Pattern (Jc) | 60 mm | |
| Mounting Dimension (H3) | 10 mm | |
| Tightening Torque (Ma) | 83 Nm |
