Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 28 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2160936 | |
| Brand | INA | |
| Base Type | BF7028 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

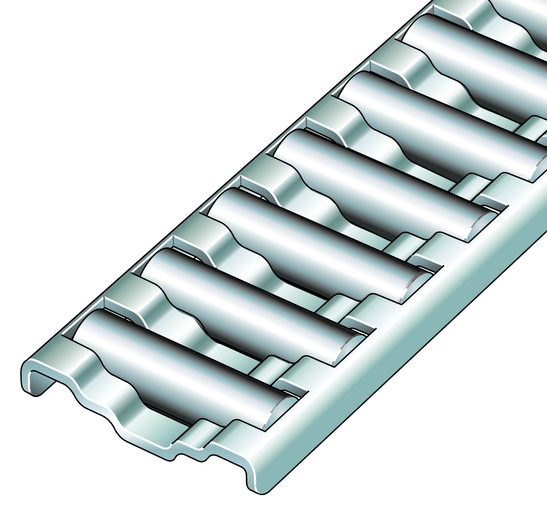

| Construction | flat cage, single row | |
| Short Description | Flat cage |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 28 mm | |
| Dynamic Load Rating (C) | 150,800 N | |
| Basic Static Load Capacity (C0) | 331,800 N | |
| Min. (Eb1) | 24 mm | |
| Length Rolling Element (Lw) | 24 mm | |
| Rolling Element Diameter (Dw) | 7 mm | |
| Max. Length (Lk Max) | 6,000 mm | |
| Tolerance (Tol Eb) | 0.2 mm |
