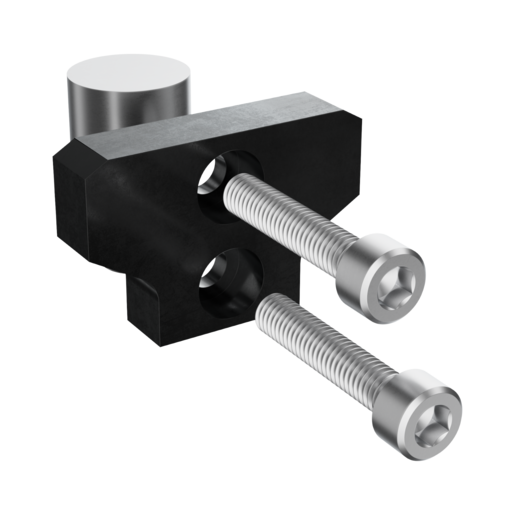

INA ANS.LFS52-C

End piece technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 0.073 kg
Thickness End Plate S Tec (S): 10 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Mass	≈m	0.073 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1148741
Brand		INA
Base Type		ANS.LFS52-C

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		End plates for guideway LFS
Short Description		End piece

Technical Data1 parameter

Technical Data
Parameter	Symbol	Value
Thickness End Plate S Tec (S)		10 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA ANS.LFS52-C
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
