INA AMS50 Locknut socketadapter for precision locknuts AM

MANUFACTURER PRODUCT VIEW

INA / Locknut socketadapter for precision locknuts am

INA AMS50

Locknut socketadapter for precision locknuts am technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 53 mm
Outside diameterD: 70 mm
Mass≈m: 0.239 kg
Bore Diameter (D): 53 mm
Outside Diamater (D): 70 mm
Height (H): 19 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications

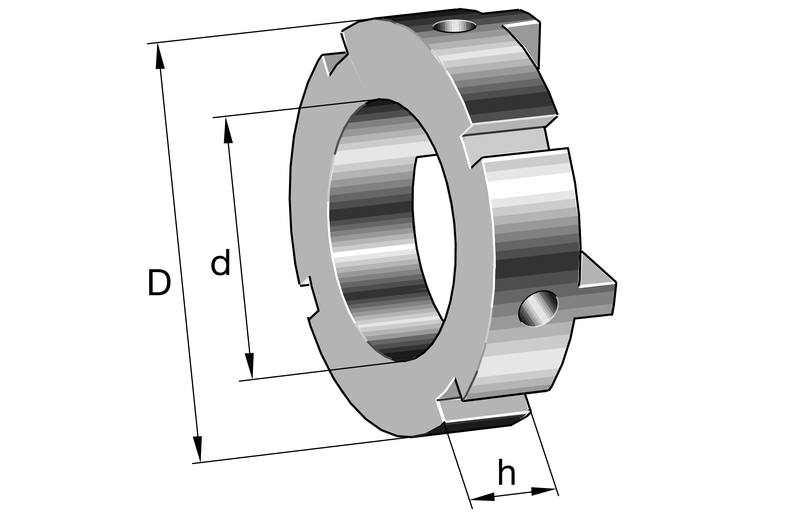

Parameter	Symbol	Value
Bore diameter	d	53 mm
Outside diameter	D	70 mm
Height	H	19 mm
Mass	≈m	0.239 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		345511
Brand		INA
Base Type		AMS50

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		adapter for precision locknuts AM
Short Description		Locknut socketadapter for precision locknuts AM

Technical Data7 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		53 mm
Outside Diamater (D)		70 mm
Height (H)		19 mm
Distance Bore (C)		6 mm
Hight Retaining Slot (T)		2.5 mm
Bore Diameter Through Hole (B)		6 mm
Groove Width (B)		6 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA AMS50
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
