Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | D | 100 mm |
| Width | B | 28 mm |
| Mass | ≈m | 0.78 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 408908 | |
| Brand | INA | |
| Base Type | AM70 | |
| Old Designation | ["AM 70"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

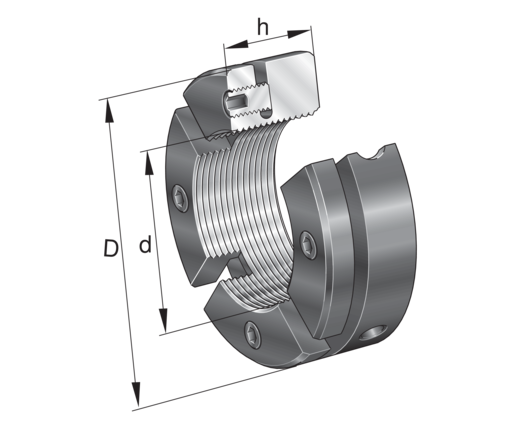

| Construction | Precision locknuts AM, segments for clamping | |
| Short Description | Precision locknut |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diamater (D) | 100 mm | |
| Total Height (H) | 28 mm | |
| Mounting Torque Set Screw (Ma) | 15 Nm | |
| Depth Blind Hole (T) | 10 mm | |
| Distance Bore (C) | 9 mm | |
| Breakawag (Ml) | 450 Nm | |
| Mounting Torque Reference (Mal) | 130 Nm | |
| Bore Diameter Blind Hole (B) | 8 mm | |
| Pitch Circle Diameter 1 (Holes) (D1) | 90 mm | |
| Breaking Load, Axial (Fab) | 650,000 N | |
| Mass Moment Of Inertia (Mm) | 14.7 kg*cm2 |
