Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 203 | |
| Bore diameter | d | 17 mm |
| Outside diameter | D | 40 mm |
| Width | B | 12 mm |
| Basic dynamic load rating | C | 9.8 kN |
| Basic static load rating | C0 | 4.75 kN |
| Mass | ≈m | 0.06 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1156924 | |
| Brand | INA | |
| Base Type | 203 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

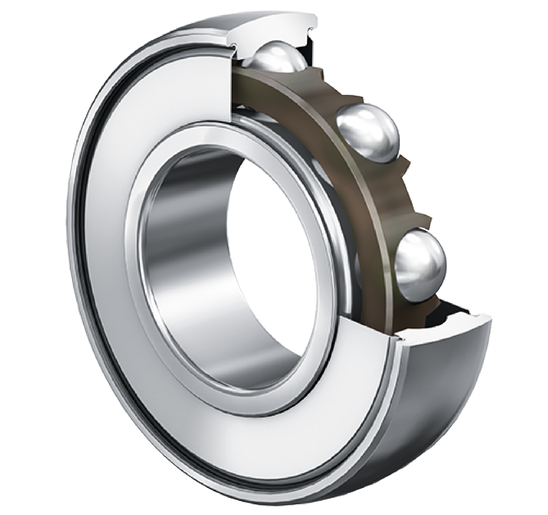

| Construction | Self-aligning deep groove ball bearings 2..-NPP-B, spherical outer ring, inner ring for fit, R seals on both sides | |
| Short Description | Self-aligning deep groove ball bearings |
Technical Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 17 mm | |
| Outside Diameter (Dsp) | 40 mm | |
| Width, Inner Ring (B) | 12 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 9,800 N | |
| Basic Static Load Rating, Radial (C0R) | 4,750 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Rib Diameter Sealing Inner Ring (D2) | 23.35 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.6 mm |
